Coolbox, 30 l

Two 1-litre bottles can be stored upright in the front section of the coolbox installed centrally below the bunk. A mesh divider keeps the bottles securely in place while driving and protects the contents behind them. The refrigerator is equipped with integrated battery protection which switches off the refrigerator automatically if the battery voltage drops too low.

Two variants are available: One is installed in a fixed position (can only be accessed with the bunk folded up); the other can be extended for convenient access.

The refrigerator has two setting options:

  • In hibernation mode (temperature is maintained) or normal operation (temperature is gradually reached), the compressor runs at a reduced speed.
  • When the quick-cooling function is active (refrigerator cools down rapidly to the desired temperature), the compressor runs at maximum speed until the set temperature has been reached, after which it automatically switches to normal operation. When starting for the first time, after a lengthy period of non-operation or whenever a large amount of warm food is placed in the refrigerator, the quick-cooling function prevents the temperature from rising too far.

Properties:

  • Power requirement (min./max.): 30 W/60 W
  • Temperature range from: + 2 °C to + 15 °C (tolerance +/– 2 °C)
  • Refrigerant: R1234yf
  • Length: 440 mm
  • Width: 325 mm
  • Height: 265 mm
  • Volume: 32 l

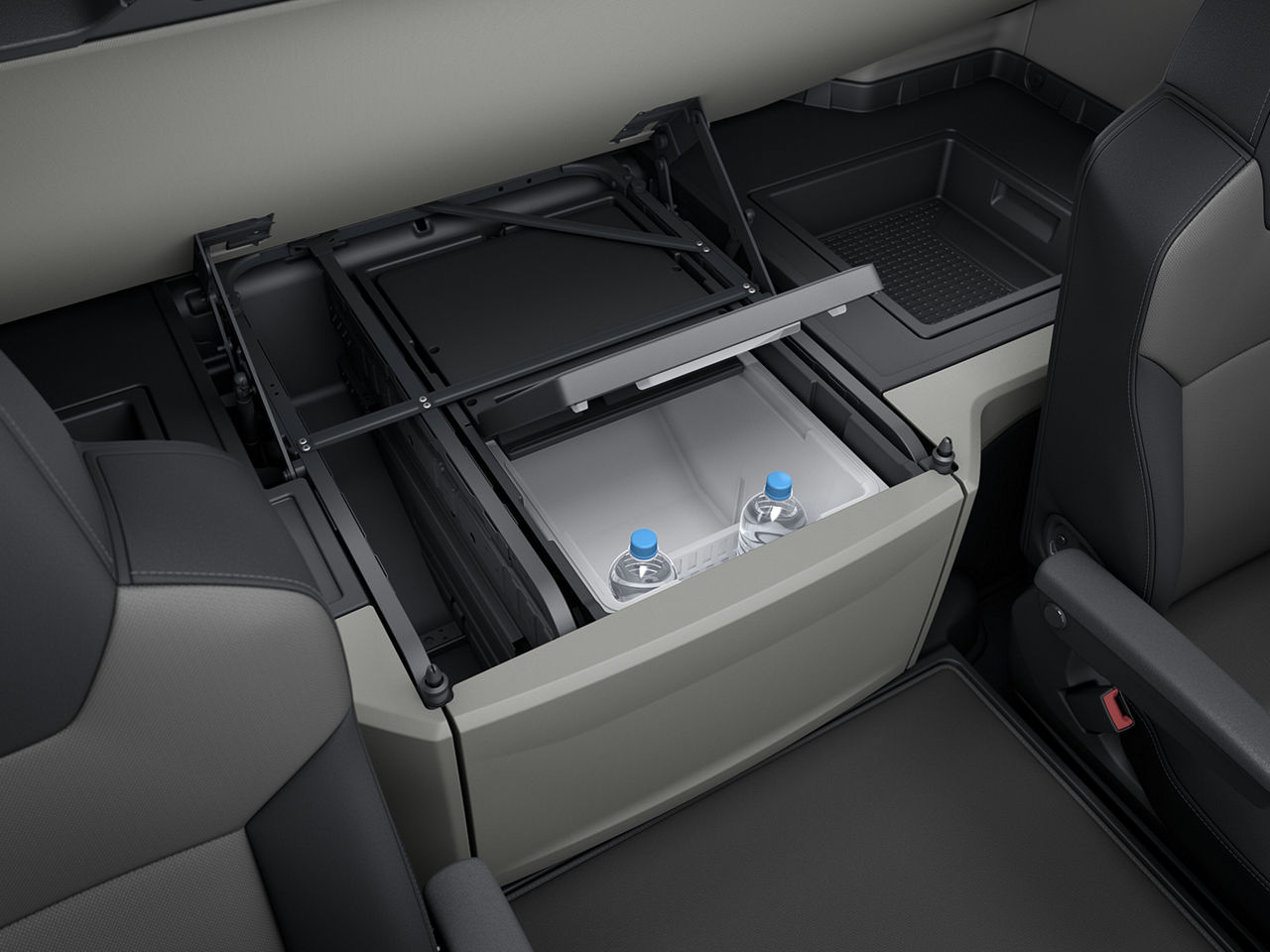

30 liter cool box installed in a fixed position

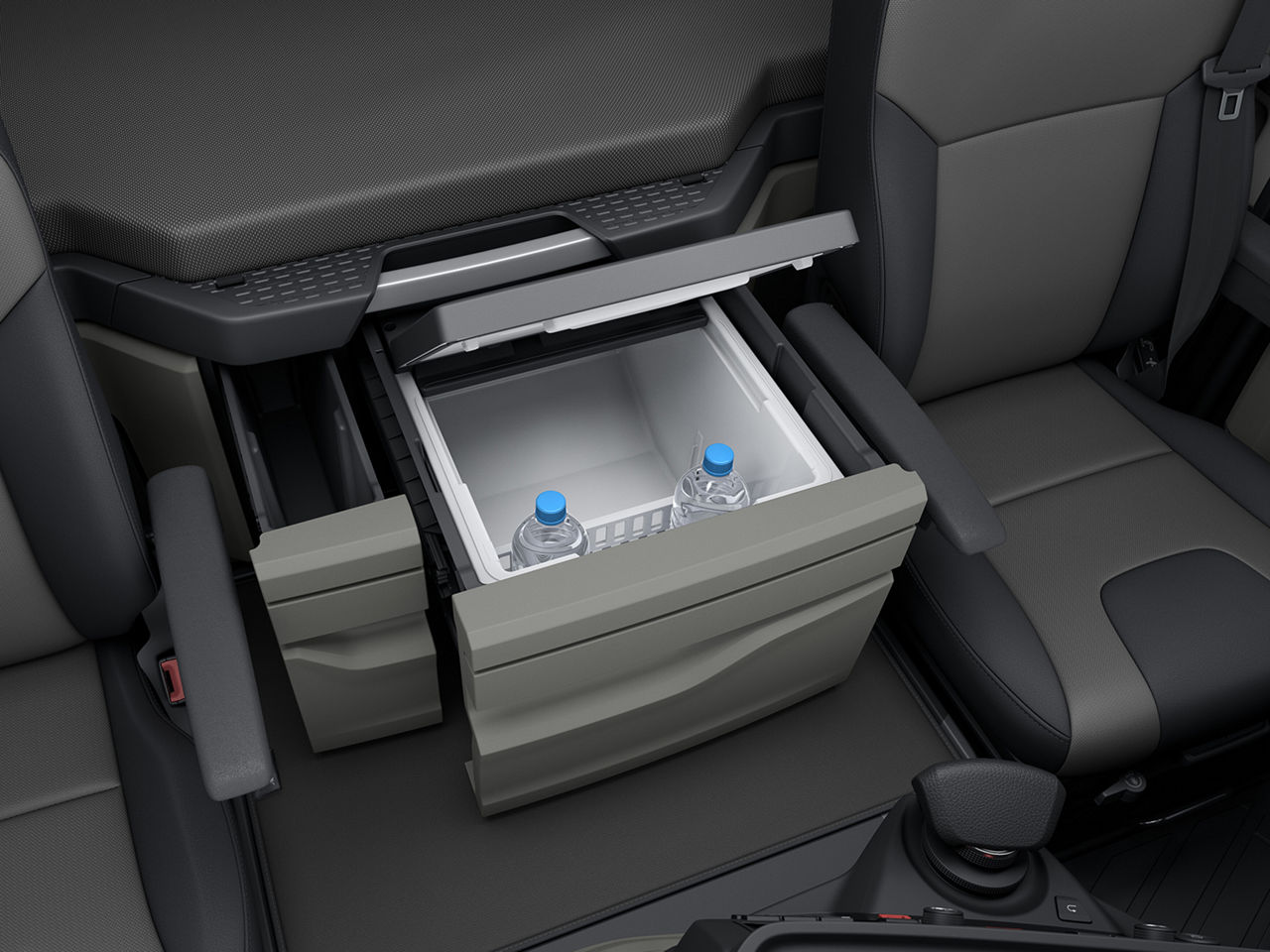

Extendable 30 liter cool box

MAN Genuine coolbox, 30 l, permanently installed, with storage space

Item number: Designation: Suitable for:
81.63910-6469* Storage box with coolbox, moon grey TGS, TGM, TGL, left-hand drive, with TM/TN cab from MY 2020
81.63910-6475* Storage box with coolbox, desert beige
81.63910-6468* Storage box with coolbox, moon grey TGS, TGM, TGL, right-hand drive, with TM/TN cab from MY 2020
81.63910-6474* Storage box with coolbox, desert beige

* The item number does not contain any assembly parts. These must be ordered separately (see assembly instructions download and parts overview).

MAN Genuine coolbox, 30 l, extendable, with drawer

Item number: Designation: Suitable for:
81.63910-6446 Coolbox TGS, TGM, TGL with TM/TN cab from MY 2020
81.63910-6346* Storage box with drawer, moon grey TGS, TGM, TGL, left-hand drive, with TM/TN cab from MY 2020, not for vehicles with a mechanical parking brake or manual gearbox
81.63910-6347* Storage box with drawer, desert beige
81.63910-6356* Storage box with drawer, moon grey TGS, TGM, TGL, right-hand drive, with TM/TN cab from MY 2020, not for vehicles with a mechanical parking brake or manual gearbox
81.63910-6357* Storage box with drawer, desert beige

* The item number does not contain any assembly parts. These must be ordered separately (see assembly instructions download and parts overview).

MAN Genuine coolbox, 30 l, extendable, with fixed storage area

Item number: Designation: Suitable for:
81.63910-6446 Coolbox TGS, TGM, TGL with TM/TN cab from MY 2020
81.63910-6350* Storage box with moon grey storage TGS, TGM, TGL, left-hand drive, with TM/TN cab from MY 2020
81.63910-6351* Storage box with desert beige storage
81.63910-6360* Storage box with moon grey storage TGS, TGM, TGL, right-hand drive with TM/TN cab from MY 2020
81.63910-6361* Storage box with desert beige storage

* The item number does not contain any assembly parts. These must be ordered separately (see assembly instructions download and parts overview).
