At a glance
-
High-traction and robust
Innovative all-wheel drive, engageable front-wheel drive and powerful braking systems ensure safety and stability on every construction site.
-
Payload Champion
Thanks to the weight-reduced engine and other components, MAN construction vehicles have an excellent payload balance.
-
Cockpit suitable for use on construction sites
Robust and safe: MAN cabs are made for hard daily work on construction sites.
High-traction drive and superior brake output
Full speed ahead and solid braking – even on the most demanding construction site terrain.
- Drive
- Off-road driving program
- Brake systems
All-wheel drive technology by experts
Above all, construction vehicles must be able to reliably travel off the road. When it comes to drive technology, MAN has three innovative solutions ready to go, depending on the application:
For occasional driving on rough terrain, when maximum traction with large axle articulation is required, the selectable mechanical all-wheel drive is the optimum all-wheel drive technology. With the permanent mechanical all-wheel drive, you are ideally equipped for frequent high traction requirements with less axle articulation. The all-wheel drive is available in 4x4, 6x6, 8x6 and 8x8 configuration. Power is distributed by two-speed MAN transfer cases.
The engageable hydrostatic MAN HydroDrive front-wheel drive [Van-LimitsSystem] briefly boosts propulsion in the event of increased traction requirements. MAN HydroDrive [Van-LimitsSystem] offers a payload advantage of 400 to 750 kg compared to mechanical all-wheel drives, making the hydrostatic front-axle drive ideal for road vehicles occasionally used off road.
To MAN HydroDrive [Van-LimitsSystem]
Maximum stability in off-road terrain
With the OFFROAD driving program tailored to construction site deployment, the semi-automatic MAN TipMatic gearbox [Van-LimitsSystem] ensures higher gear speeds and minimal traction interruptions on steep or uneven construction site terrain – for more power when it is most needed. If the truck does get stuck on loose ground, the rocking-free function makes it easier to move off.
MAN TipMatic in detail [Van-LimitsSystem]

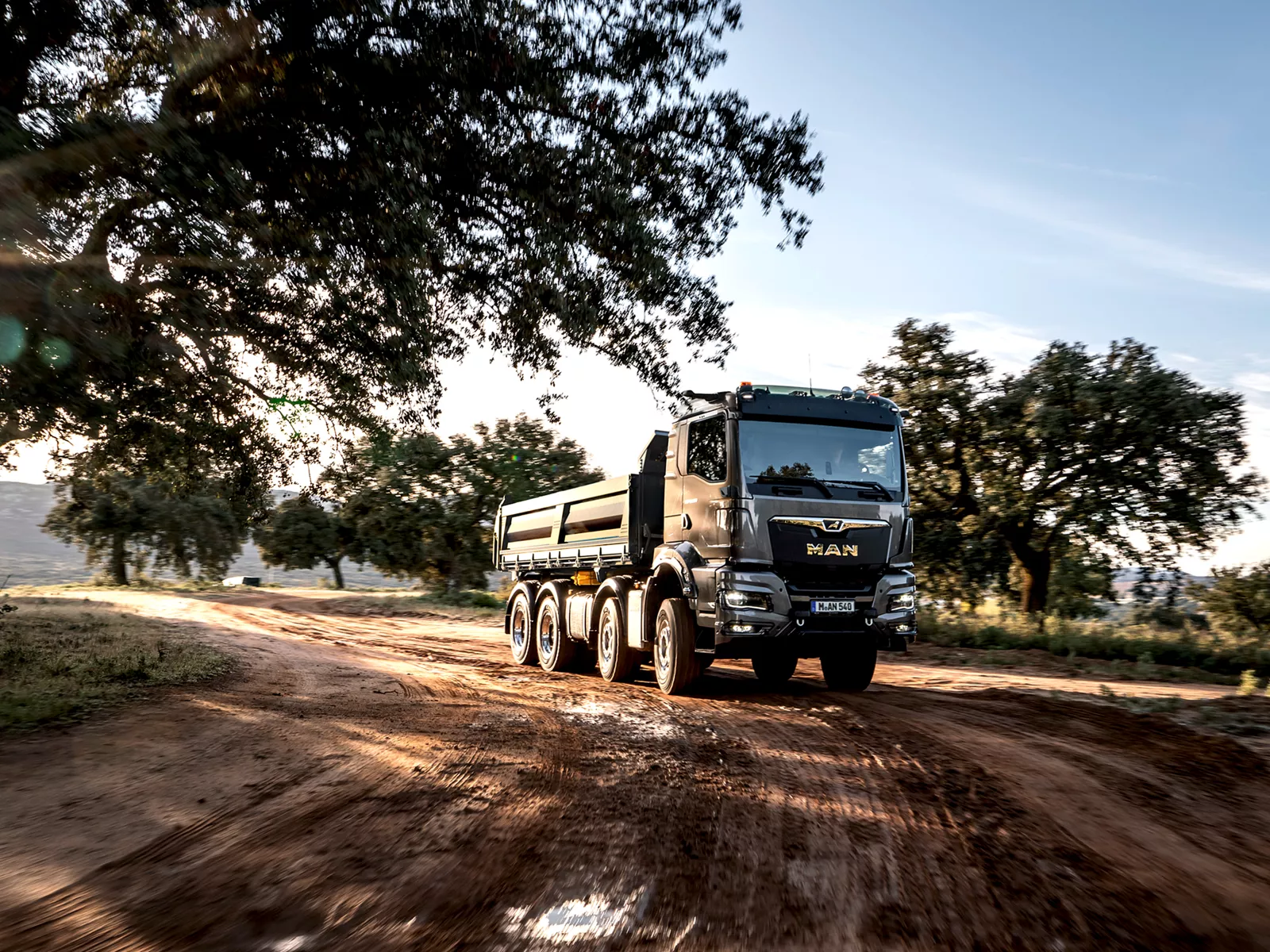

Superior braking performance
Various components ensure solid, powerful braking in construction traffic: The MAN PriTarder continuous brake supports the engine brake and ensures enormous brake output at low and medium speeds. The TurboEVBec engine brake with PriTarder features high brake output even at medium speed, thus enabling safe and low-wear downhill driving.
Equipped with a hill-climbing brake acting on all wheels by means of compressed air, the driver can easily move off on a difficult incline without rolling back or slipping.
On loose ground or slippery roads, the ABS with selectable off-road logic improves the braking effect. Construction vehicles equipped with all-wheel drive also come with ESP, which constantly monitors vehicle stability.
Outstanding in terms of payload and efficiency
When transporting building materials, every extra kilo is crucial, because the more you can load, the greater your profit.
MAN construction vehicles score points thanks to weight-optimised components with an outstanding payload balance. This is ensured by a lower unladen weight, which is achieved with lighter engines and uniform light-weight cab design without compromising on safety.
The D26 engine now impresses with a performance of up to 540 HP and a maximum torque of up to 2,650 Nm, whilst complying with the Euro 6e emission standard.
The D15 engine is lighter weight. The payload is further increased by integrating the TurboEVBec engine brake without a secondary retarder. This means more payload and efficiency for you, so that you can notch up performance even more.
Working ergonomically
The MAN cabs with steel bumpers and protective guards for the headlights make the hard work on the construction site easier – thanks to the now robust front being less susceptible to damage.
- Boarding
- MAN EasyControl
- Steering wheel adjustment
- MAN SmartSelect
- Field of vision
Anti-slip step unit
The stair-like steps next to the wheel cutout are clearly visible to the driver when getting off the vehicle and, in conjunction with a non-slip grating, ensure safe access and exit in all weather conditions. To reduce soiling in the cab, the grated steps are equipped with a strip edge. Moreover, the lowest, most damage-prone step allows for oscillating movements. When force is applied due to ground contact, the step returns to its shape.
MAN EasyControl panel
Vehicle functions, such as switching on spotlights or the hazard warning system or activating the engine for tipping, can be conveniently activated from the outside. Operation is done via a control panel on the inside of the driver’s door. Choose between configuration ex works or individual layout.
Individual steering wheel adjustment
The steering wheel offers an increased adjustment range for a personalised and ergonomic steering position. When parking, the steering wheel can also be pushed forward into a horizontal position, making access and exit a lot easier.
Safe operation even on unstable ground: MAN SmartSelect
The MAN SmartSelect infotainment control system is operated safely and reliably by a rotary pushbutton control with integrated touchpad – thanks to the thumb-ball support even when driving over hill and dale.

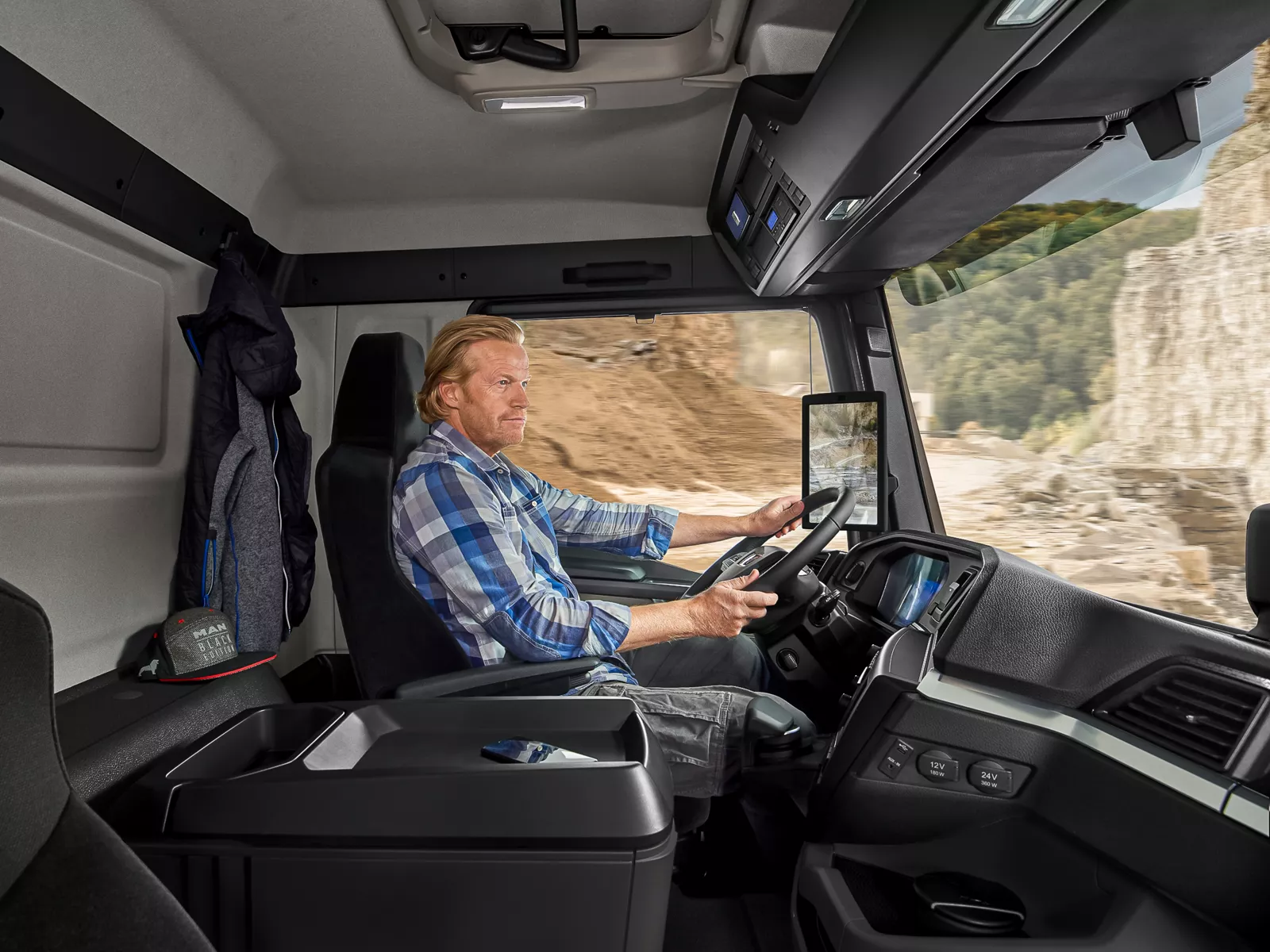

Everything in view
Optimised side mirrors are located further to the rear, which not only improves aerodynamics but also increases the direct field of vision for the driver. Cockpit and dashboard have been lowered, which serves the same purpose.
