The new MAN eTGL: The eTruck for urban distribution transport

The MAN TGM & MAN TGL
Contact

AT A GLANCE

  • Fully electric, manoeuvrable and compact

    The efficient use of the battery capacity and compact, manoeuvrable design provide the ideal conditions for urban and regional distribution transport.

  • Innovative quick charging

    Thanks to the innovative fast charging, you can charge the battery packs in just 35 minutes and use your breaks to your advantage.

  • Electric means extra useful

    In urban environments, your eTruck means that you don’t have to worry about access restrictions due to emissions regulations.

Powerful, efficient, zero-emission: the new MAN eTGL

The MAN eTGL is setting new standards in urban and regional transport. With its fully electric drive, the compact commercial vehicle combines eco-friendly credentials with outstanding power and economy. The sophisticated cooling and heating system ensures the efficient use of the battery capacity from both battery packs (160  kWh). The MAN eTGL is also extremely manoeuvrable and boasts stable handling with heavy loads thanks to the short wheelbase.

This agile eTruck has a versatile design, for use with dry-freight and cool boxes of different sizes[kofferaufbau]  and its quiet operation benefits both the driver and residents. What’s more, when it comes to exhaust emissions, you don’t have to worry about access restrictions due to pollutants with the MAN eTGL.

MAN eTGL: The future of inner-city distribution transport

MAN eTGL: The future of inner-city distribution transport

The flexible solution for urban distribution transport. With its manoeuvrable dimensions and a single range of up to 310 kilometres[actual-range], this 12-tonne-class eTruck is the right choice to master your daily challenges. Whether for parcel transport or in the logistics sector, the MAN eTGL is a popular purchase for its high efficiency and relaxed driving comfort.



MAN eTGL: The future of inner-city distribution transport

The MAN eTGL: Ideal for temperature-controlled logistics

The all-electric MAN eTGL proves its strengths not only in regular distribution transport, but also in complex refrigerated logistics. It’s the perfect solution for zero-emissions food transport, delivering to places like inner-city restaurants. Its optimised wheelbase range ensures both high manoeuvrability and maximum load capacity.

Use the high-voltage industry-standard interface to connect the necessary cooling units directly and efficiently to the vehicle’s high-voltage network. The units can be mounted where you like – either conventionally at the front of the body or weight-optimised below the frame – to make the best possible use of the permissible total weight.

MAN eTrucks haben die 5 Millionen gefahrene Kilometermarke erreicht

Together on the road to success: 18 million electric kilometres with our customers.

Strong partnerships shape the future. Together with our customers across Europe, the MAN eTruck fleet has reached the 18 million kilometre mark in real operation. Every single kilometre proves the absolute reliability of our electric trucks and shows: confidence in MAN’s electromobility is growing steadily. Join us as we write the next chapters of our success story. Curious about exclusive insights and developments?
Sign up now for eMobility news!

MAN cab for the MAN eTGL

Maximum driving comfort: The right cab for your purpose


CC cab – the compact one

  • Compact for local and distribution transport or construction sites
  • Very low step unit
  • Wide opening doors
  • Easy cross-cab access
  • Dirt-resistant interior

TO THE MAN CAB CC

Innovative design, powerful features

MAN eTGL: Digital cockpit for comfortable driving and efficient working


All-digital instrumentation

Everything at a glance: The new standard view of the high-resolution 12.3-inch colour display offers intuitive operation and clearly shows the most important vehicle data. The semicircular arrangement of the speedometer and rev counter creates more space in the centre for additional information such as energy balance and electric PTOs.


Calm display mode

Focus on what matters. The new calm display mode only shows the most important driving information for quick checks. It can be activated manually and switches on automatically when reversing.

The battery: The heart of the MAN eTGL

MAN batteries

The battery in the new MAN electric truck generation sets new standards. The MAN eTGL promises a competitive industry-standard daily range (up to 310 km[actual-range]) and an effective battery capacity of 160 kWh (two battery packs) for payloads. If you use your breaks wisely for top-up charging, you can increase the daily range further. With innovative fast chargers with a charging capacity of 250 kW, you can usually recharge the battery packs in just 35 minutes.

We produce our batteries in-house at the MAN site in Nuremberg, keeping the expertise for this key technology in our own hands. The MAN batteries are specially developed for commercial vehicles and meet the requirements of these vehicles in daily use. They offer high energy levels while staying lightweight and keeping costs down – without any compromises in terms of operational safety.

Battery packs in the MAN eTGLUsable battery capacityMax. range for solo vehicle for distribution transport (0.69 kWh/km)Recommended use for the MAN eTGL
2 battery packsUp to 160 kWhUp to 310 km[actual-range]Optimised for urban distribution transport
Charging infrastructure
The interactive charging infrastructure map from MAN.

Charge everywhere. Arrive safely.

The European charging infrastructure is ready for your MAN eTruck. See for yourself and check the availability of charging stations on your routes throughout Europe.
Check the network coverage

Also available for ADR-compliant applications

ADR equipment in accordance with types AT and FL is available for select versions of the MAN eTGL. The MAN eTGL can therefore also be used for regulated transport tasks in urban or regional areas.

The ADR-compliant vehicle design includes, among other features, ADR-compliant wiring, speed limitation and additional safety and shut-off systems such as battery-powered emergency shut-off functions.

The MAN eTGL is therefore expanding its range of applications – while maintaining the same efficient and locally emission-free operation you are accustomed to.

Virtual showroom: Explore the new MAN eTGL

Dive into the fascinating world of the new MAN eTrucks. In our virtual showroom, you can discover the MAN eTGL from four different views – from the complete vehicle to the technology, battery and driveline.

Virtual showroom of the MAN eTGL

TECHNICAL DATA FOR THE MAN eTGL

 4x2 chassis
RangeUp to 310 km[actual-range]
Battery packs2
Battery capacityUp to 160 kWh
Gross vehicle weight / combination weight11.99 t

Service solutions for reliable vehicle availability

Personalised services for your MAN eTGL

Efficiency through clever service concepts

Get more from your electric truck fleet: With our bespoke range of services, we'll help you get the most out of your new MAN eTGL. We adapt flexibly to your service requirements. The MAN ServiceCare digital service connects your vehicles to the workshop and provides transparency regarding maintenance requirements, wear data and the condition of the high-voltage batteries. Your MAN service outlet can proactively group together upcoming work and efficiently coordinate workshop appointments – helping to reduce the number of workshop visits and increase uptime by ensuring your fleet is in optimal condition.

Go to our services

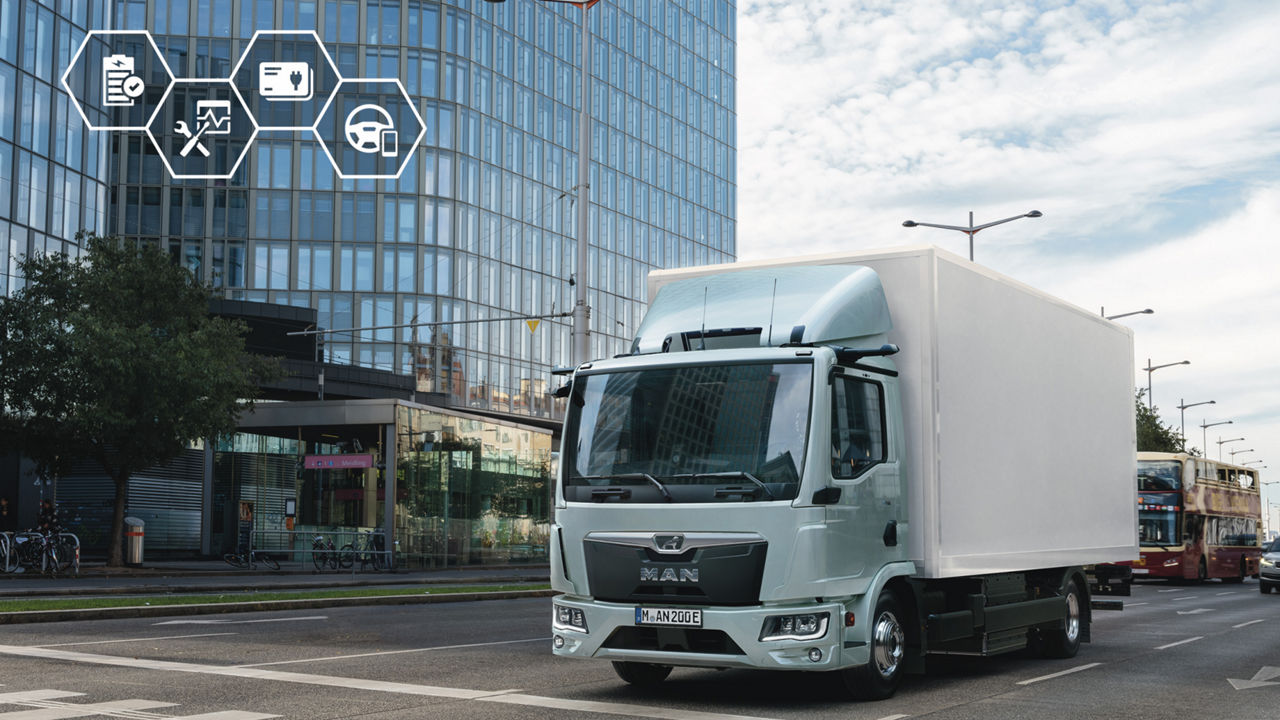

With an MAN eTGL, you can keep a close eye on the condition of your high-voltage batteries at all times.

Keep an eye on your high-voltage batteries at all times

Our in-house manufactured battery packs are at the heart of your MAN eTGL and ensure its performance. Keep an eye on the condition of your high-voltage batteries with MAN ServiceCare. For a certain degree of ageing in battery packs is inevitable over time. Keep an eye on the performance of your high-voltage batteries so that you can reliably plan your daily range. If a defect occurs, the professionals at the MAN service outlets carry out professional repair work. This protects the environment, saves resources and gets your truck back on the road as quickly as possible.

Go to MAN ServiceCare
Flexible service contracts from MAN, tailored precisely to you and your eTGL.

Calculable costs for maintenance and repair

Save time and money: With our flexible MAN service contracts, we help you to increase the availability of your fleet and minimise financial risk. Choose precisely the service modules that suit your needs – and tailor them to your specific requirements. This way you benefit from maximum cost transparency and planning certainty, while we take care of your vehicle with reliability and expertise when it comes to the new technology.

Go to the MAN Service contracts

MAN eReadyCheck: Range calculator for optimum route planning for your electric truck

MAN Transport Solutions

Planning to purchase a MAN eTGL but you want to make sure the vehicle’s range is sufficient for your needs? Just use our MAN eReadyCheck, which shows you the MAN electric vehicles that suit your requirements, based on selectable parameters.

Go to MAN eReadyCheck
