Engines for yachts and sport fishing boats

Engines for yachts and sport fishing boats

high power density and unbeatable smoothness

Important facts about MAN engines for yachts and sports fishing boats

For yachts and sport boats, MAN Engines offers powerful and compact high-speed diesel engines from 537 kW to 1,471 kW (730 HP to 2,000 HP). All MAN engines are characterised by high power development even in the lower speed range – with extremely economical fuel consumption. The advantages of the V-engines in the power range from 735 kW to 1,471 kW (1,000 HP to 2,000 HP) lie primarily in their outstanding power output combined with compact dimensions.

After installation, MAN Engines offers inspection and acceptance as well as comprehensive commissioning of the engine. With the Gold Standard certificate for this engine acceptance, the boat owner receives an additional warranty. All engines comply with the internationally applicable exhaust emission regulations. As dynamic high-performance products, MAN engines impress with high pulling power that gets you safely and comfortably to your destination – and even at high power, the engines run quietly with low vibration. In addition, the low power-to-weight ratio allows you to optimally plan the loading of your yacht.

Applications

  • (Luxury) yachts
  • Sport fishing boats

MAN engines for yachts and sport fishing boats at a glance

High power density combined with economical fuel consumption

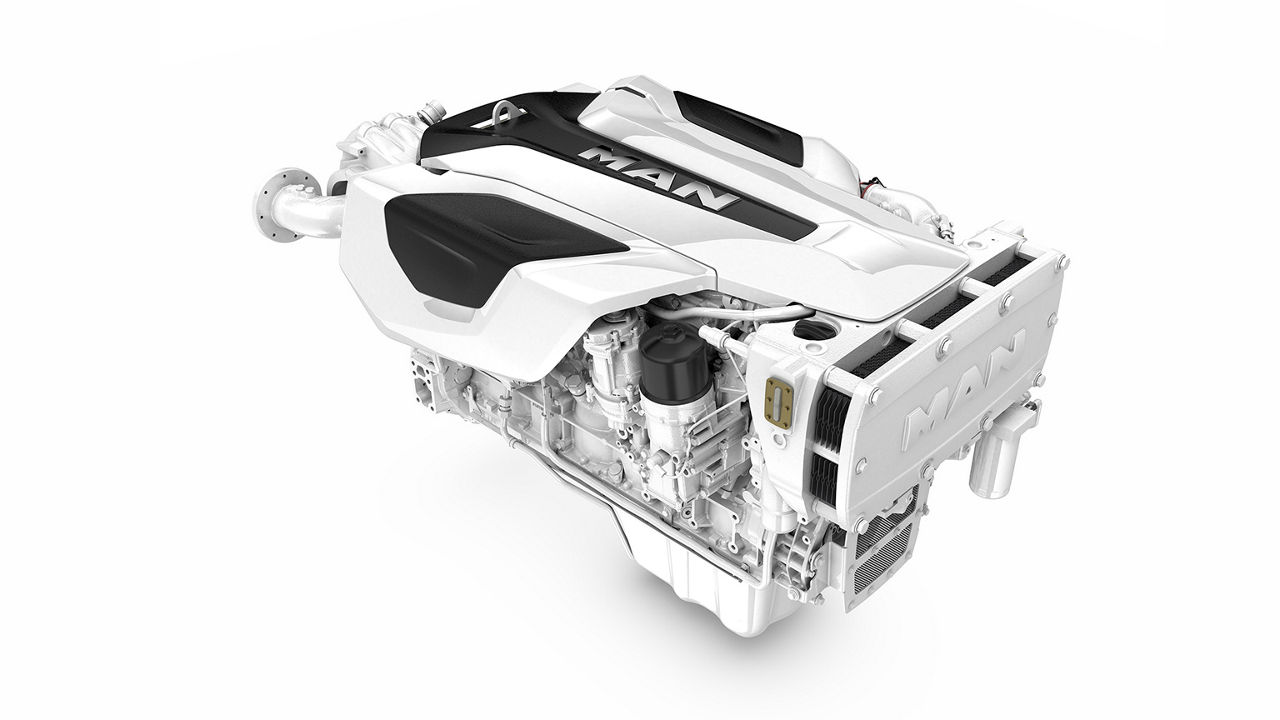

MAN i6 engines (i6-730, i6-800, i6-850)
MAN i6 engines (i6-730, i6-800, i6-850)
  • 6 cylinders. 12.4 litres displacement
  • Bore 126 mm, stroke 166 mm
  • Power 537 kW (i6-730), 588 kW (i6 800), 625 kW (i6-850)
More details

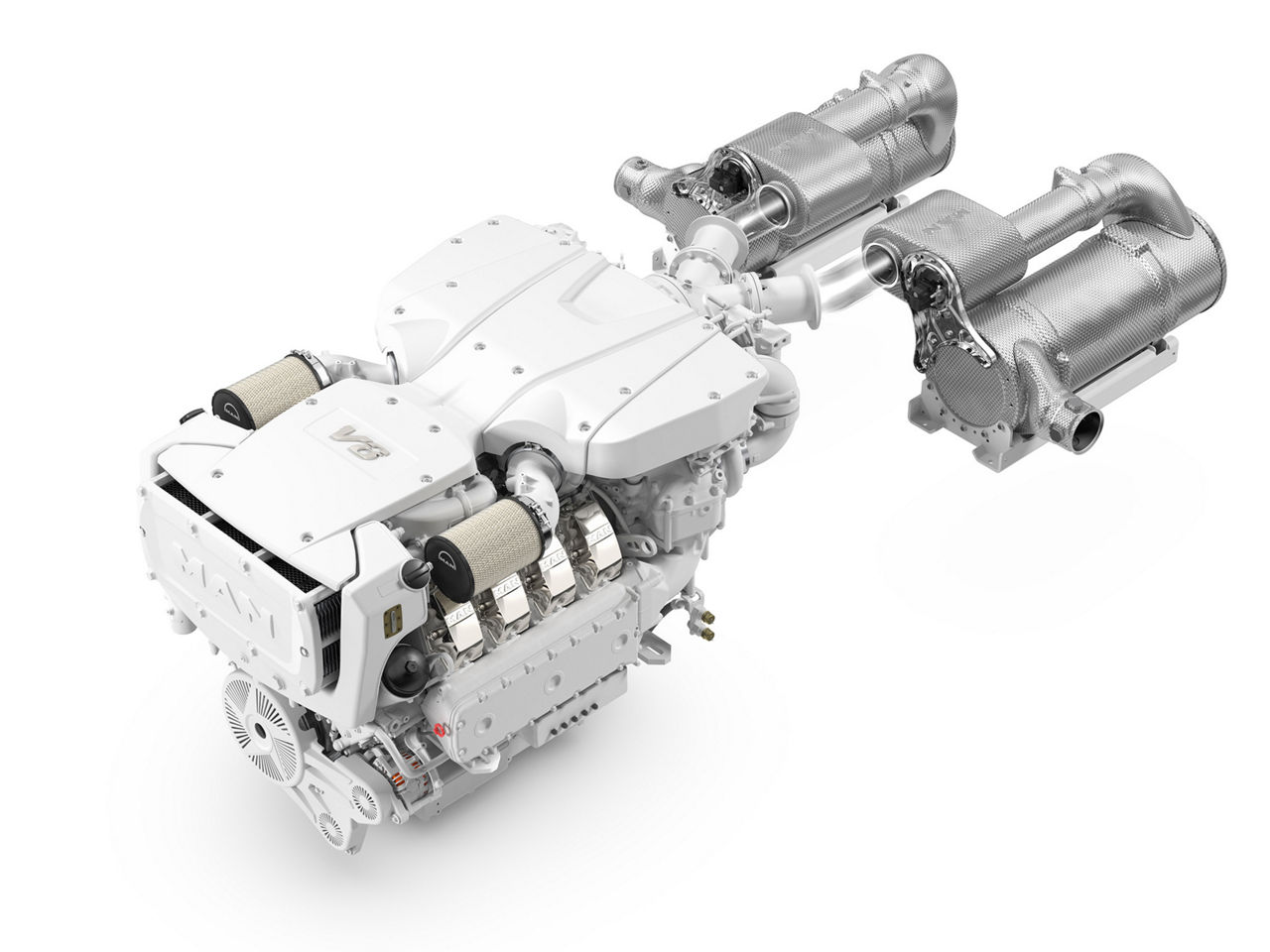

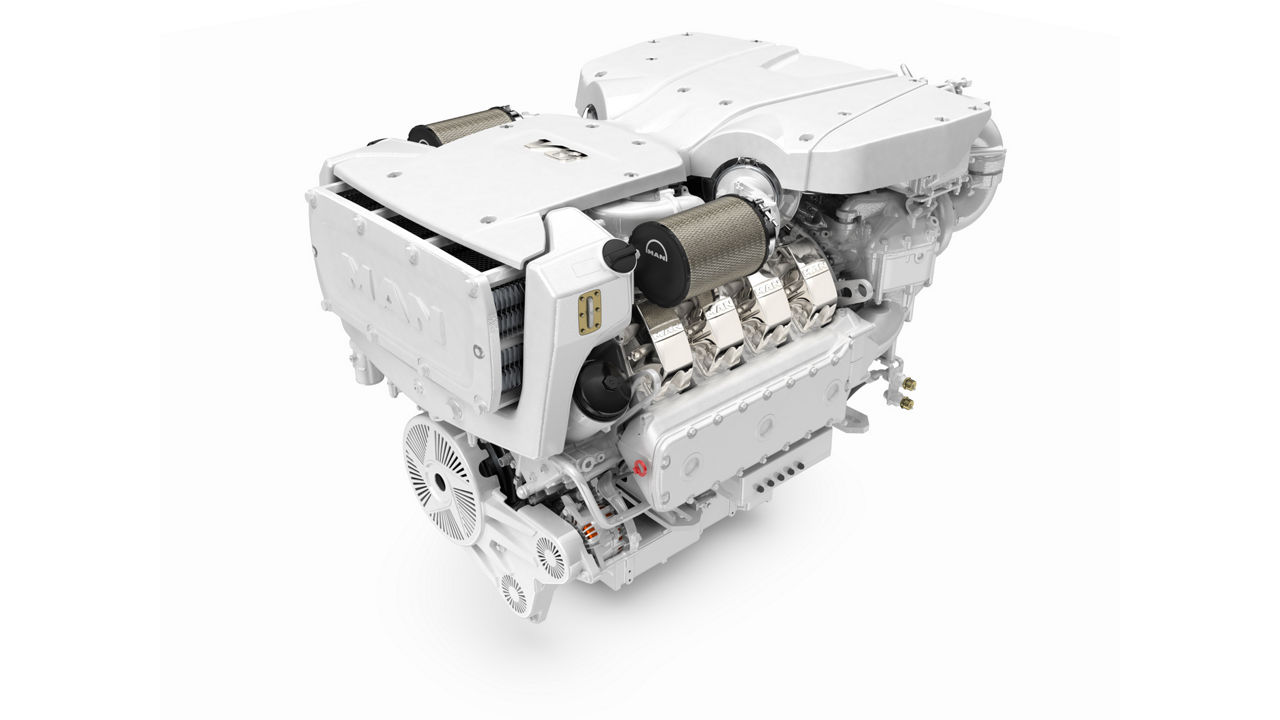

MAN V8 engines (V8-1000, V8-1200, V8-1300)
MAN V8 engines (V8-1000, V8-1200, V8-1300)
  • 8 cylinders. 16.2 litres displacement
  • Bore 128 mm, stroke 157 mm
  • Power 735 kW (V8-1000), 882 kW (V8-1200), 956 kW (V8-1300)
More details

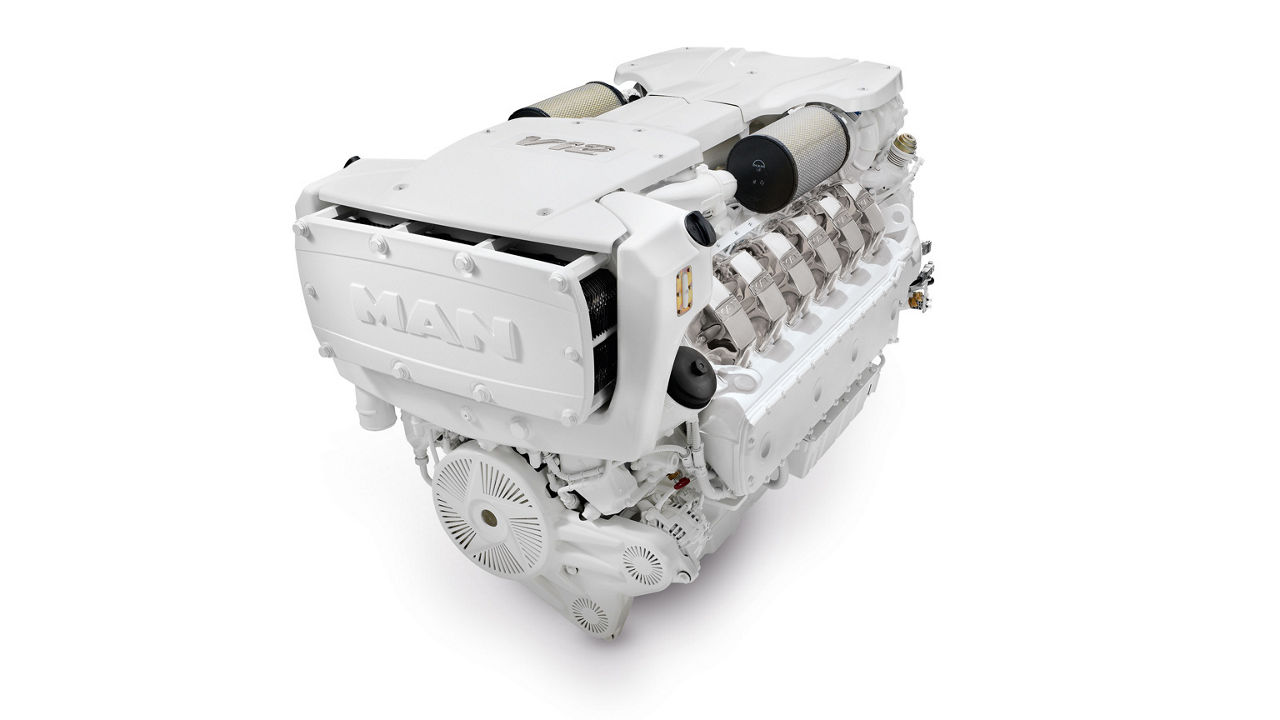

MAN V12 engines (V12-1400, V12-1550)
MAN V12 engines (V12-1400, V12-1550)
  • 12 cylinders. 24.2 litres displacement
  • Bore 128 mm, stroke 157 mm
  • Power 1029 kW (V12-1400), 1140 kW (V12-1550)

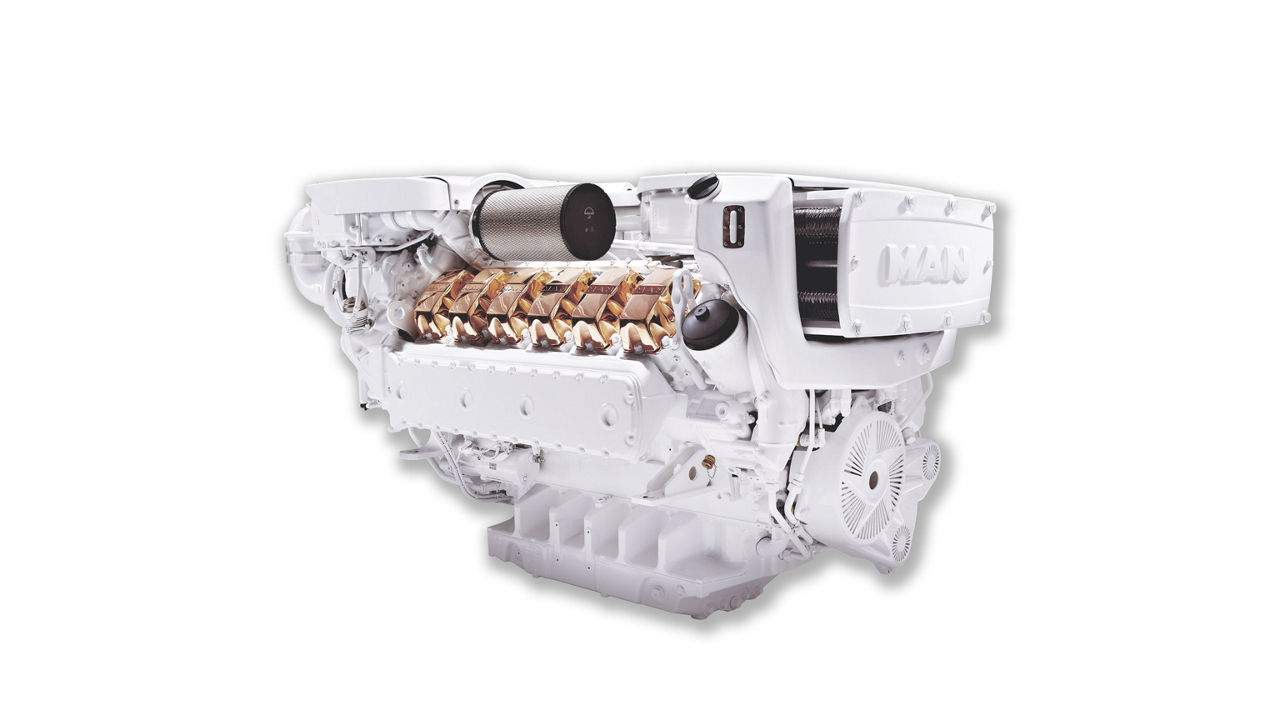

MAN V12 engines (V12-1650, V12-1800)
MAN V12 engines (V12-1650, V12-1800)
  • 12 cylinders. 24.2 litres displacement
  • Bore 128 mm, stroke 157 mm
  • Power 1213 kW (V12-1650), 1324 kW (V12-1800)

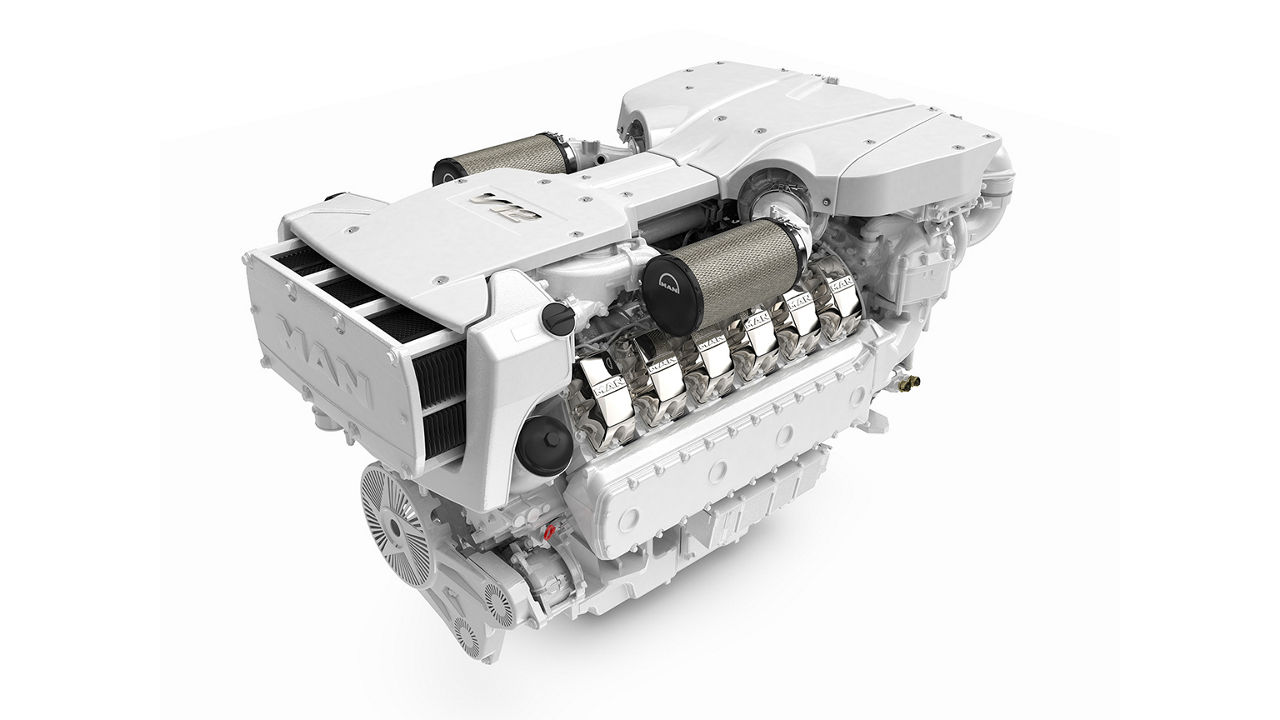

MAN V12-1900
MAN V12-1900
  • 12 cylinders. 24.2 litres displacement
  • Bore 128 mm, stroke 157 mm
  • Power 1397 kW

More details

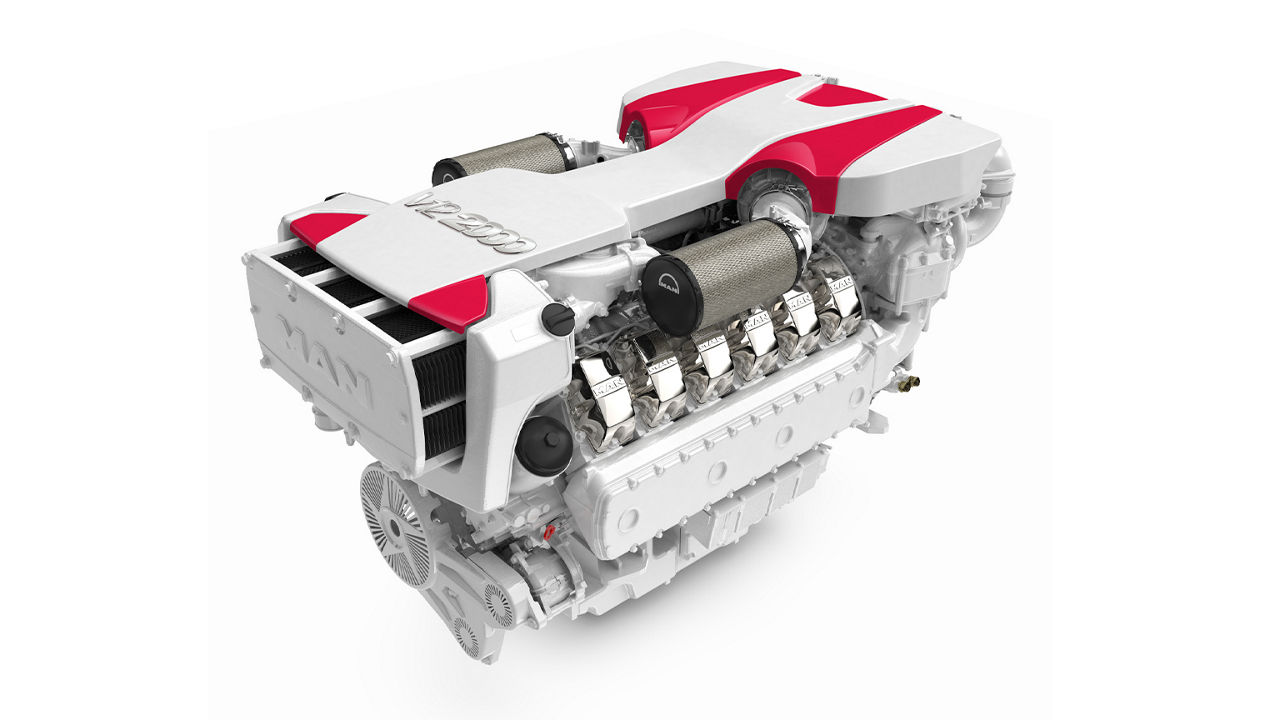

MAN V12-2000
MAN V12-2000
  • 12 cylinders. 24.2 litres displacement
  • Bore 128 mm, stroke 157 mm
  • Power 1471 kW
More details

Technical data

Always low-vibration and quiet even at high output

Output in kW Output in HP Engine model Cylinders Model Displacement in litres
537 730 i6-730 6 in-line 12.4
588 800 i6-800 6 in-line 12.4
625 850 i6-850 6 in-line 12.4
735 1,000 V8-1,000 8 V 90° 16.2
882 1,200 V8-1200 8 V 90° 16.2
956 1,300 V8-1300 8 V 90° 16.2
1,029 1,400 V12-1,400 12 V 90° 24.2
1,140 1,550 V12-1550 12 V 90° 24.2
1,213 1,650 V12-1650 12 V 90° 24.2
1,324 1,800 V12-1800 12 V 90° 24.2
1,397 1,900 V12-1900 12 V 90° 24.2
1,471 2,000 V-12-2,000 12 V 90° 24.2
Annual operating hours ≤ 1,000
Full load share ≤ 20 %
Ø Utilisation ≤ 50%
Oil change interval in hours ≤ 400
Example (Luxury) yachts, sport fishing boats

Current emission certificates

Can be used worldwide – an investment in the future

MAN Engines offers all globally important emission certificates for its yacht engines: These are specifically EPA Tier 3 recreational, China Marine Recreational Stage II, IMO Tier II and RCD 2013/53/EC (EU Recreational Craft Directive). In this way, shipyards and yacht builders secure worldwide sales markets and operators receive the greatest possible flexibility in the use and resale of their boats.

MAN Engines has received the latest type approval (homologation) for its twelve-, eight- and six-cylinder engines for the China Marine Recreational Stage II exhaust emission standard for yachts and sport fishing boats. With its limit values of 5.8 g/kWh nitrogen oxides (NO x ) and 0.12 g/kWh particulate matter (PM) – in the power class offered by MAN Engines – this complies with the EU and US limit values. The China Marine Recreational Stage II emission standard will come into force on 1 July 2022. The already applicable China Marine Recreational Stage I emission level is also covered by the current certificate.

iSea Marine Electronics

Intelligent monitoring of main drives and attachments on luxury yachts, sport fishing and work boats
More details

In focus: Learn more about

MAN base engine: The basis for our engines
Yacht engines | Working boat engines | Railway | Agricultural & construction machinery | CHP & power plants
MAN base engine: The basis for our engines

Engines are used in a broad range of applications. And each application places very different specific demands on the motor. The MAN-developed V-engine series D2868/D2862 has successfully managed to introduce 8- and 12-cylinder engines to the market in road vehicles, agricultural machinery, trains, yachts, workboats and for power generation as diesel and gas gensets.

MAN base engine: The basis for our engines
MAN D26 for yachts and work boats
Yacht engines | Working boat engines
MAN D2676: six-cylinder engine for yachts and work boats

The D2676 marine engine developed by MAN Engines is based on the D26 engine and provides an optimal, compact, low-consumption engine with a low performance weight for use in boats.

MAN D2676: six-cylinder engine for yachts and work boats
