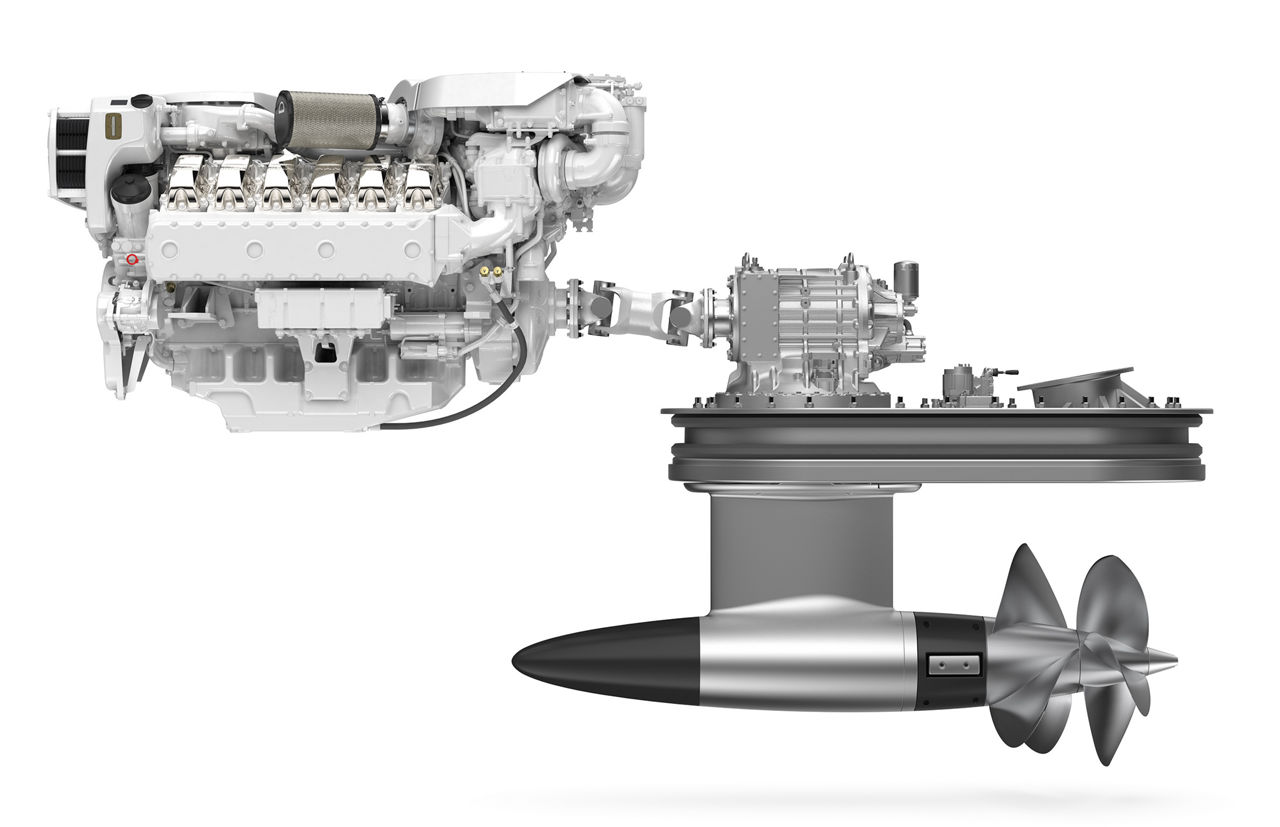

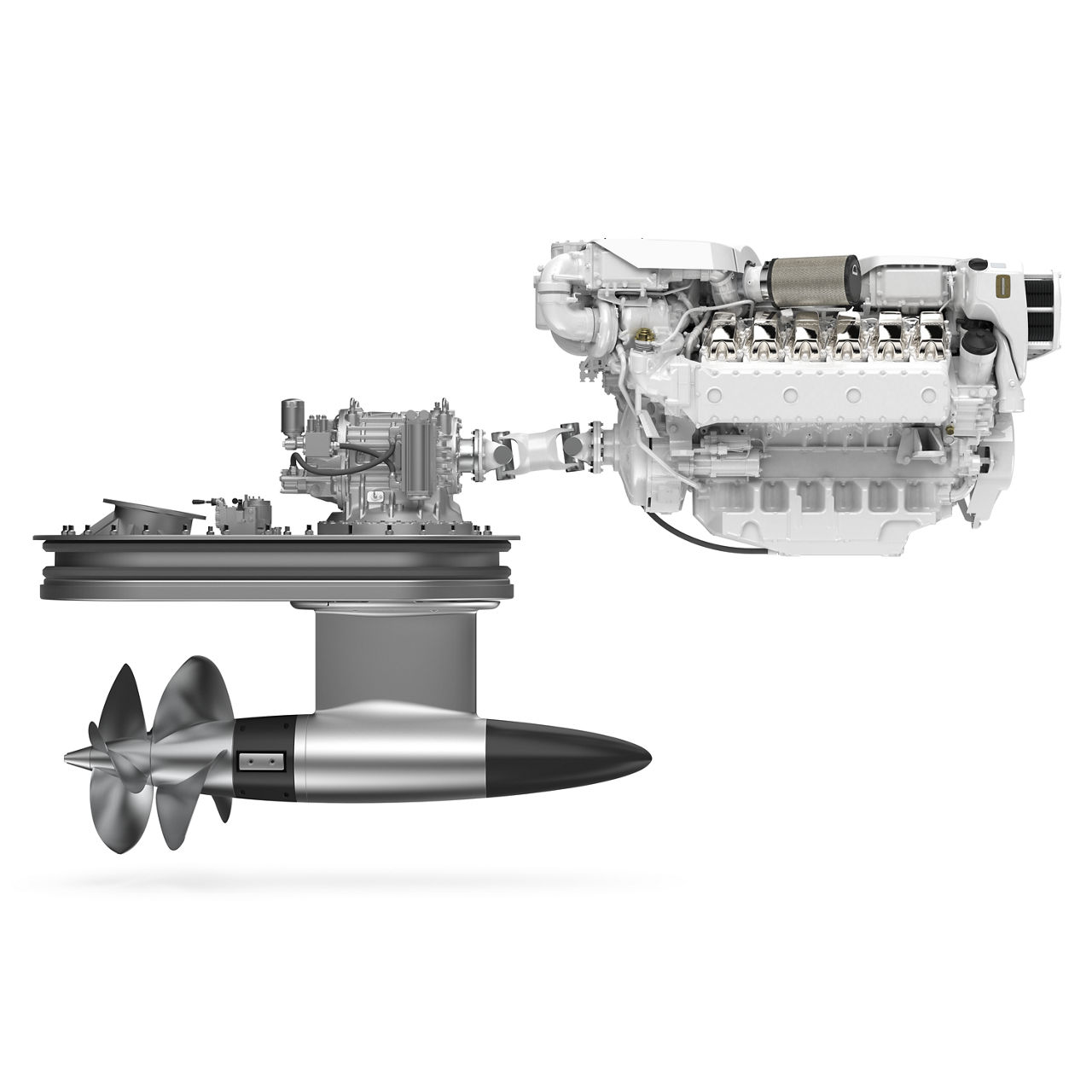

MAN Engines as a system integrator for POD systems
MAN Engines is your system integrator for end-to-end coordinated yacht propulsion systems – from the helm to the propeller. In close cooperation with ZF, we supply POD drives that take optimized fuel utilization, outstanding maneuverability and unrivalled operational reliability to a new level. One point of contact, clear interfaces, maximum reliability. Everything from MAN Engines.
WHY CHOOSE AN INTEGRATED SYSTEM FROM MAN ENGINES?
As a full-service provider, MAN Engines is responsible for the complete coordination and integration of all key functions of the powertrain and control system. The result: reduced planning effort and accelerated commissioning in operation. One contact person – responsibility and warranty from a single source.
- Reduced complexity thanks to a clear contact person, clear interfaces and defined system architecture.
- Optimally matched components and software.
- Security and availability through redundant, proven systems.
- Worldwide service and spare parts availability via MAN Engines' extensive marine network in cooperation with ZF
- New Card
- New Card
- New Card
- New Card
- New Card
- New Card
- New Card
- New Card

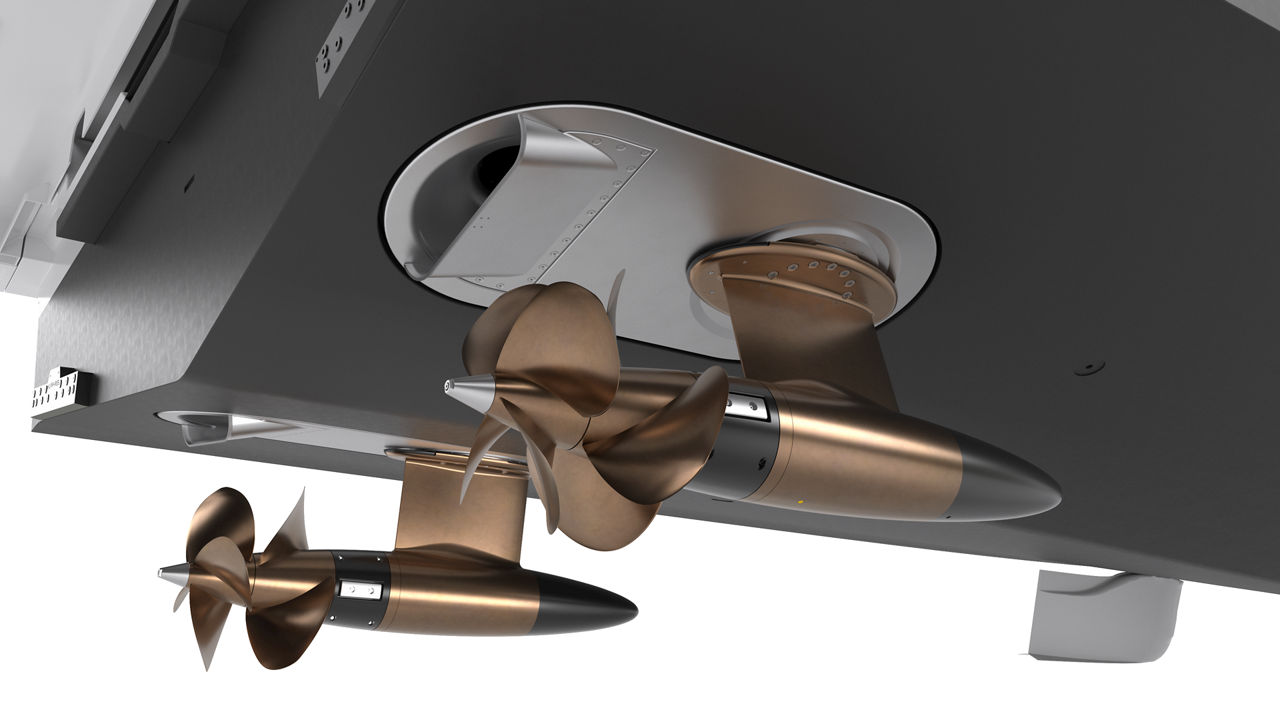

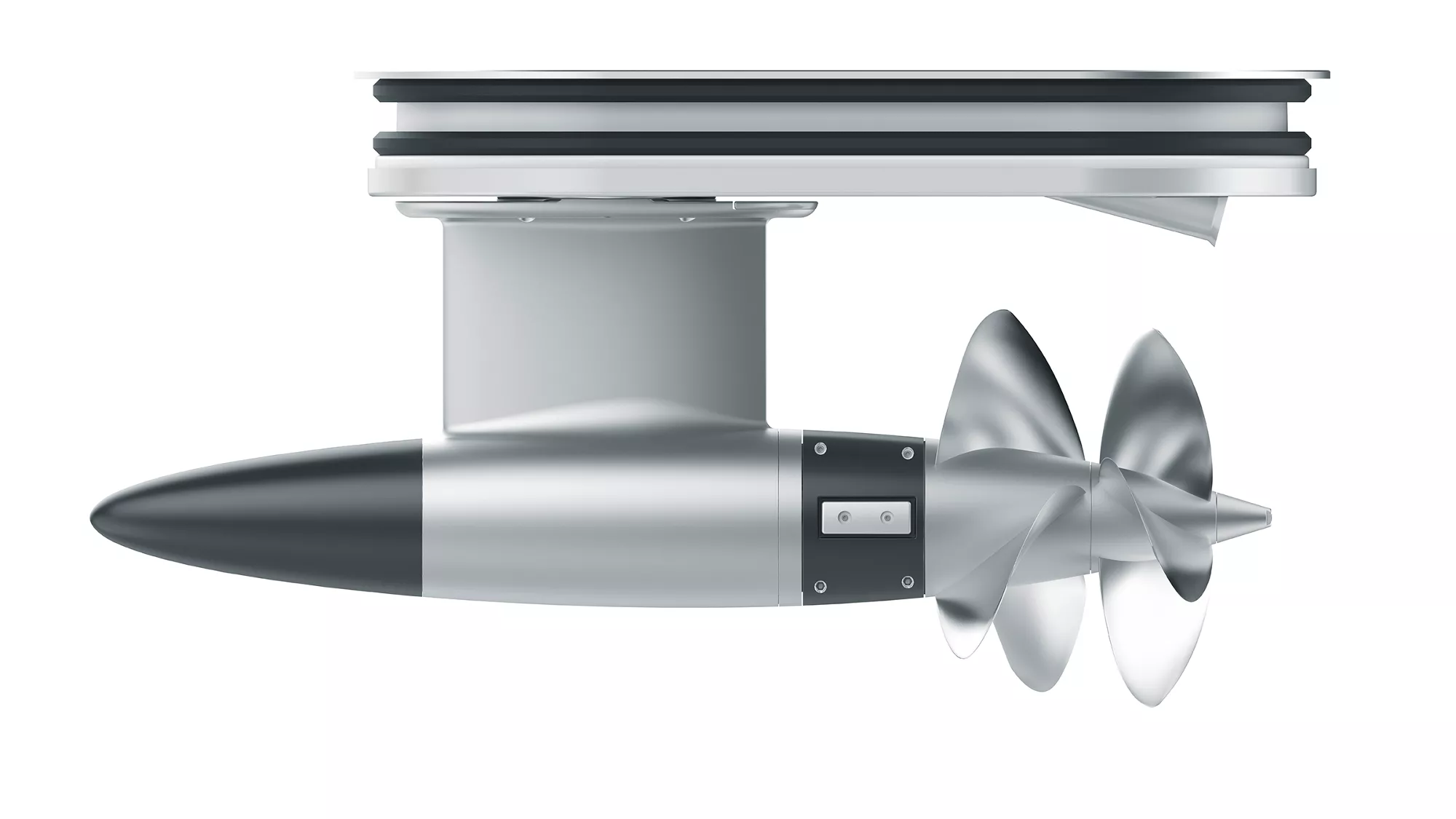

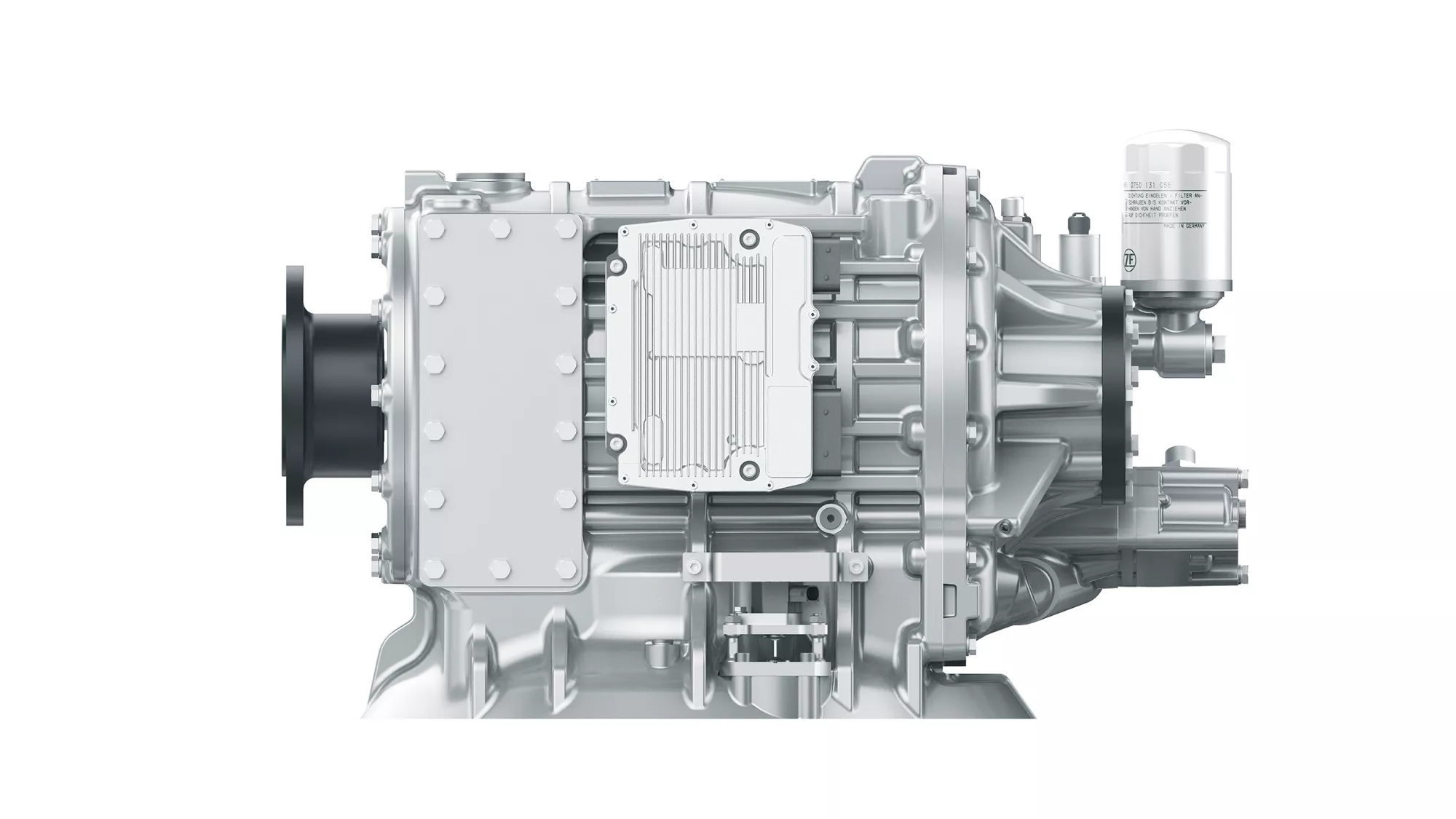

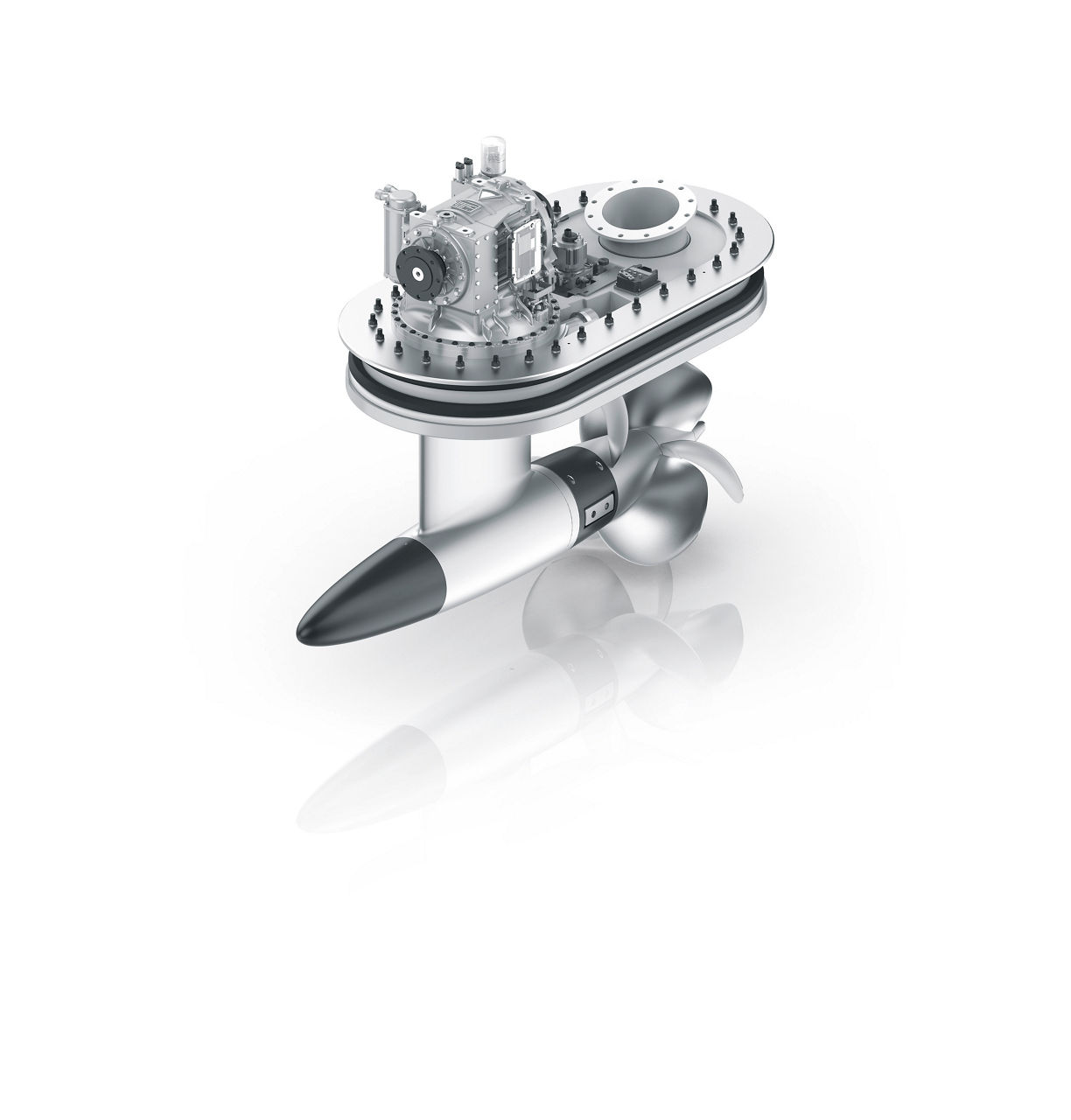

ZF POD technology – selected & integrated by MAN
The ZF POD platform combines optimized hydrodynamics with counter-rotating propellers and an electro-hydraulic steering system. In combination with proven MAN engines, a highly efficient, intuitively controllable system is created.
The propulsion system is particularly suitable for use in planing vessels and covers a wide speed range of 20 to 35 knots. More than ten different propeller series are available for optimal adjustment to different hull shapes. This means that the right solution can be implemented for every yacht in terms of performance and efficiency, so that both sporty driving performance and quiet, comfortable operation are guaranteed.
Manoeuvrability & ease of use

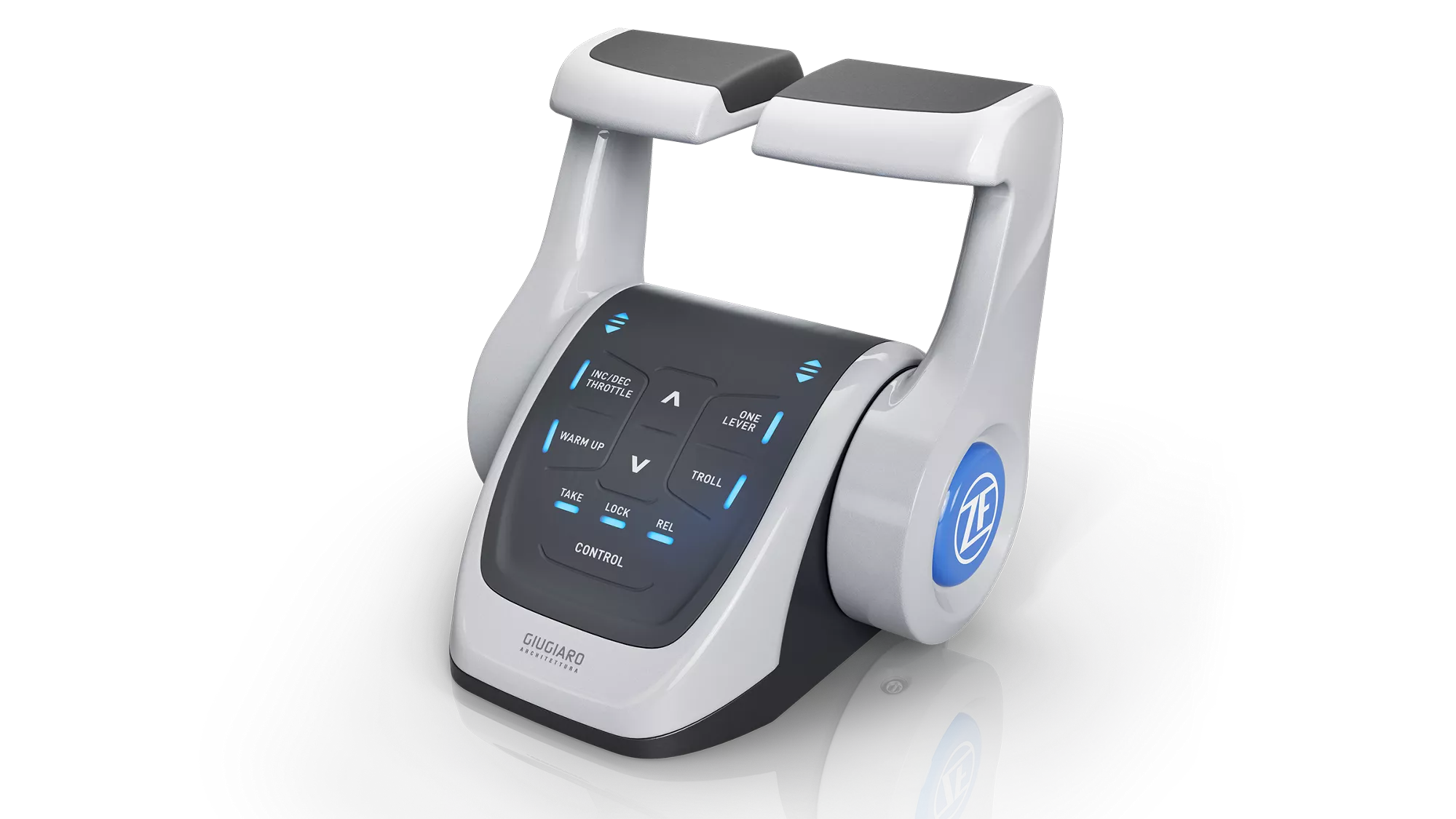

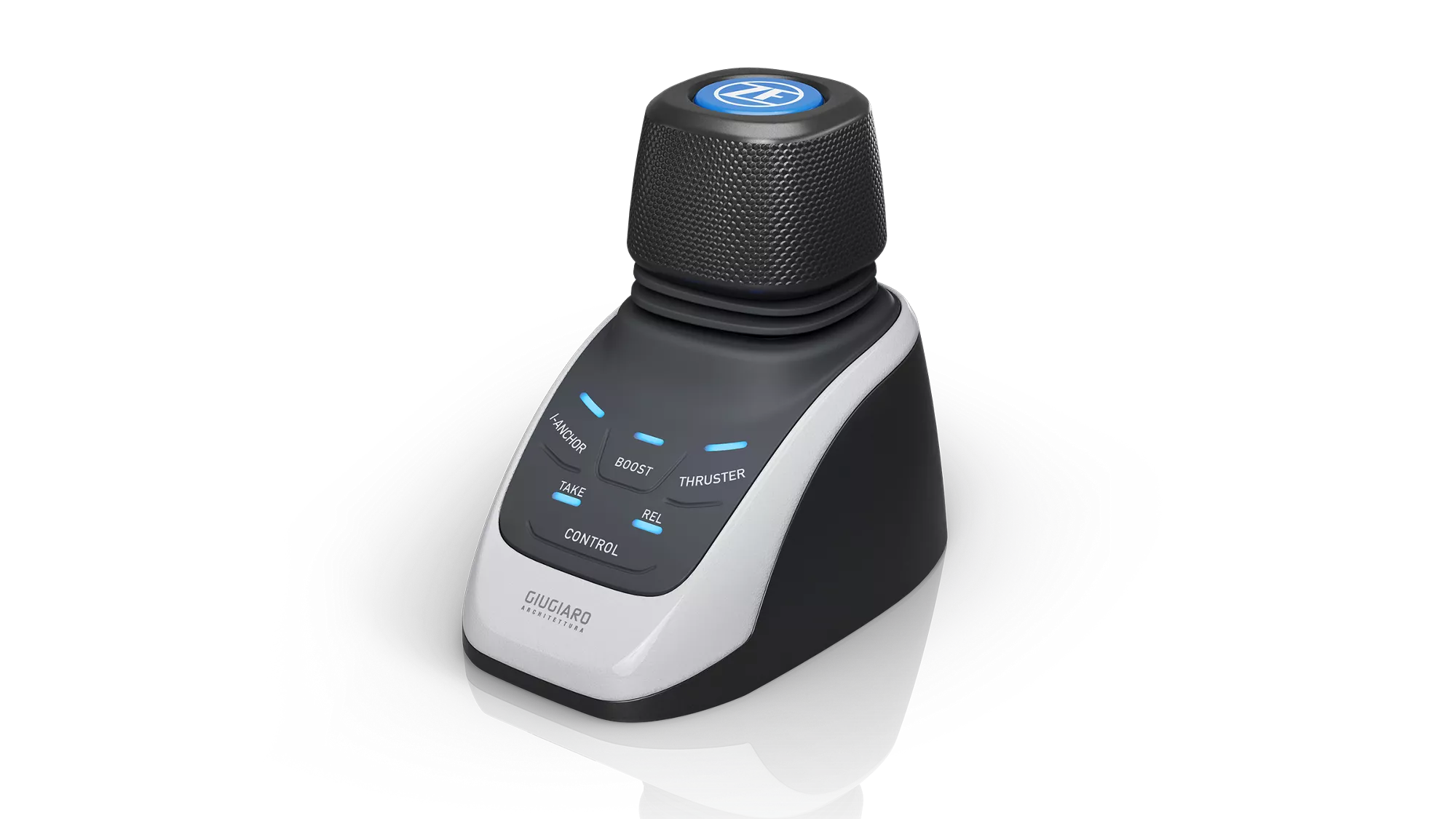

- Joystick docking and assisted control: precise control in confined spaces, intuitive and user-friendly for every user
- Head angle −30°/ +30° per underwater unit; Control via directional thrust without any rudder
- Automatic drift/wind compensation; optional dynamic positioning
- Joystick with boost mode for challenging maneuvers
Comfort on board
- Reduced vibrations thanks to damper elements and optimised hydrodynamics
Security & Robustness
- Proven POD design with comprehensive security features for reliable protection on board
- Holistic system concept with high-quality components from ZF and MAN Engines for excellent system performance
With MAN Engines, shipyards have one dedicated point of contact: from concept design to interface coordination to commissioning.
- Plug-and-play architecture: less construction time, lower installation risks
- Optimized number of components for higher reliability and easier handling of the drive system
- No need for a separate rudder system and thus less installation with less hydraulic
- Less installation space required for more flexible layouts and more spacious room design
- Use of standard communication protocols, redundant communication, integrated diagnostics
- One contact person from preliminary design to after-sales
- Joy of Driving: powerful acceleration, precise control in every driving situation
- Confident manoeuvring thanks to joystick and assistance functions
- High serviceability
- Worldwide service network
INTEGRATION ADVANTAGE OF MAN ENGINES
- Consistent system architecture instead of heterogeneous individual components – less interface risk
- Supplied by MAN Engines
- Clear framework of responsibility: engineering, warranty and service from a single source
Global Service & Support
- Worldwide service network with quickly available access to spare parts
- Remote diagnostics and on-site support via certified partners
- MAN 24/7 service hotline
Technical Data
- Input power: up to 1,471 kW / 2,000 hp @ 2,300 rpm
- Max. input torque: 6,107 Nm
- Control: electro-hydraulic (±30°)
- Installation: Twin & Multiple; Tunnel or Deadrise
AVAILABLE PRODUCT VARIANTS
Based on an established and modern platform and specially designed for demanding maritime applications, the selected engines offer precise coordination with the overall system.
