Individual configuration of vehicles thanks to top-class MAN components

Important facts about MAN axles and transfer cases

MAN components combine innovative technology and outstanding quality to achieve a cost-effectiveness that pays off for you and your customers. Benefit from our comprehensive program of first-class front and rear axles as well as transfer cases. The range also covers complete system solutions, for example complete tandem-axle assemblies. The corresponding components are designed in such a way that maintenance work can be carried out efficiently without access problems.

Easy handling thanks to low dead weight: Operators of commercial vehicles, excavators and sweepers can benefit not only from a higher payload and low consumption, but also from greater comfort thanks to quiet running qualities.

Applications

Buses: City buses, intercity buses, coaches
Trucks: Long-haul transport, heavy-duty transport, distribution transport, construction traffic
Special-purpose vehicles such as sweepers, excavators, etc.

MAN axles and transfer cases at a glance

Custom configuration options from development through to system adaptation

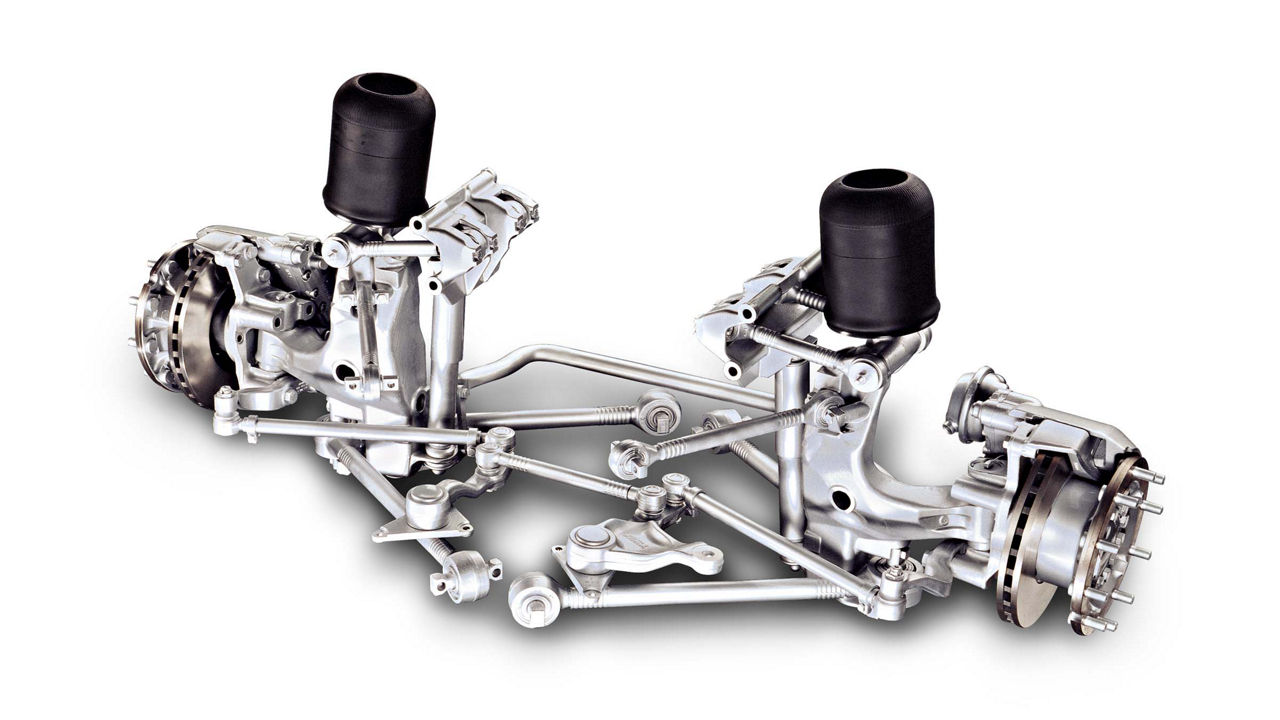

MAN front axle (bus)

MAN front axle (bus)

5.6 – 8.2 tonnes axle load
19.5 – 22.5 inch wheel size
Axle weight without wheels 350 – 470 kg

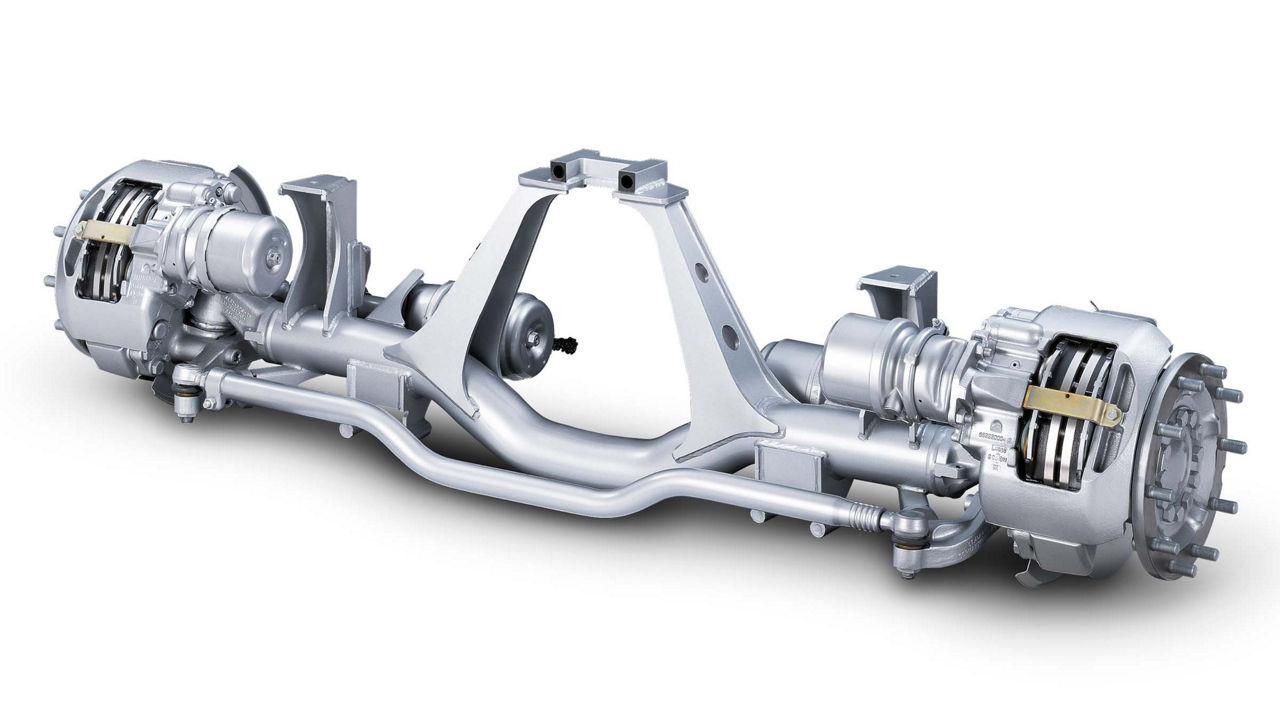

MAN trailing axle (bus)

MAN trailing axle (bus)

6.3 – 8.5 tonnes axle load
22.5 inch wheel size
Axle weight without wheels 460 – 515 kg

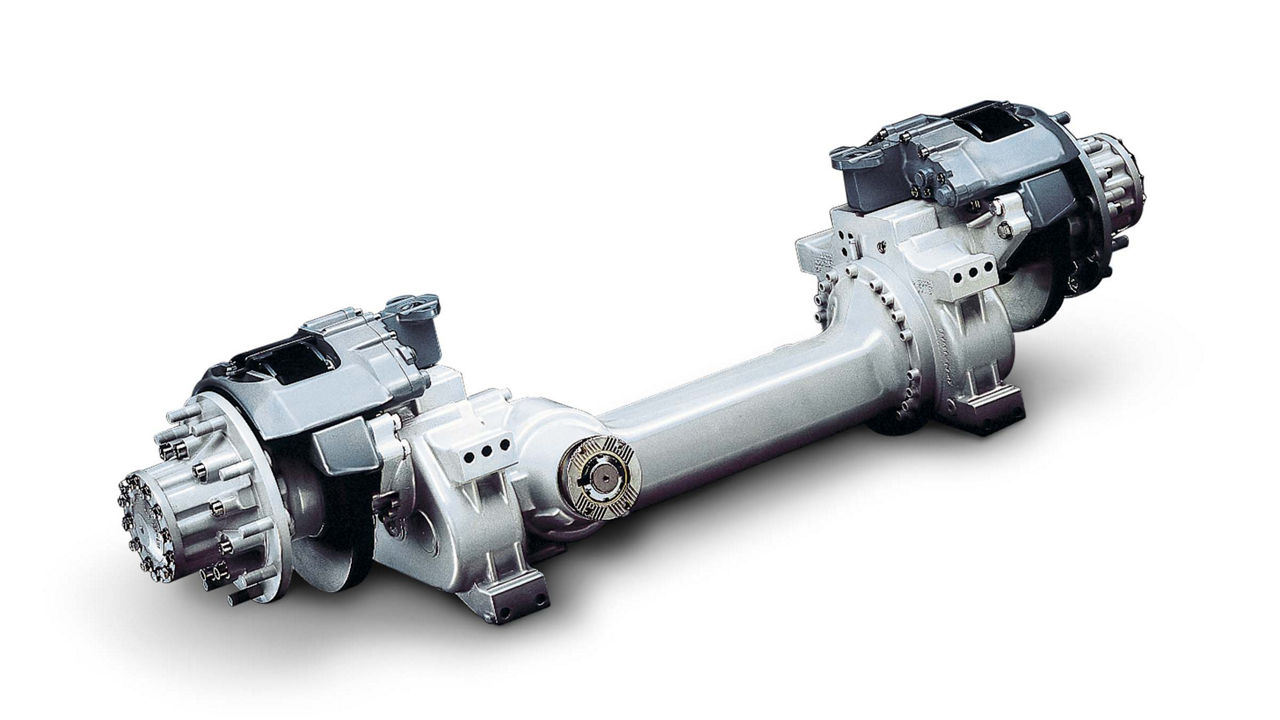

MAN planetary rear axle (bus)

MAN planetary rear axle (bus)

11 – 13 tonnes axle load
22.5 inch wheel size
Axle weight without wheels 691 – 944 kg

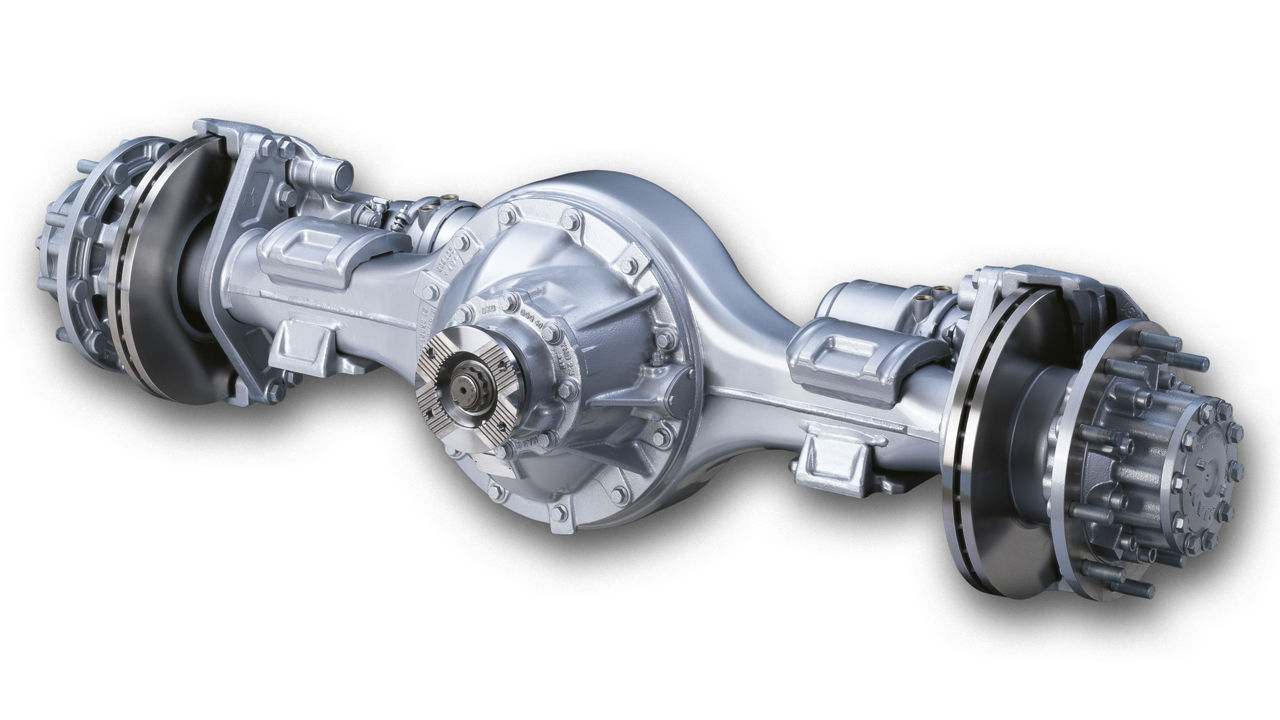

MAN hypoid rear axle (bus)

MAN hypoid rear axle (bus)

8.7 – 13 tonnes axle load
17.5 – 22.5 inch wheel size
Axle weight without wheels 472 – 753 kg

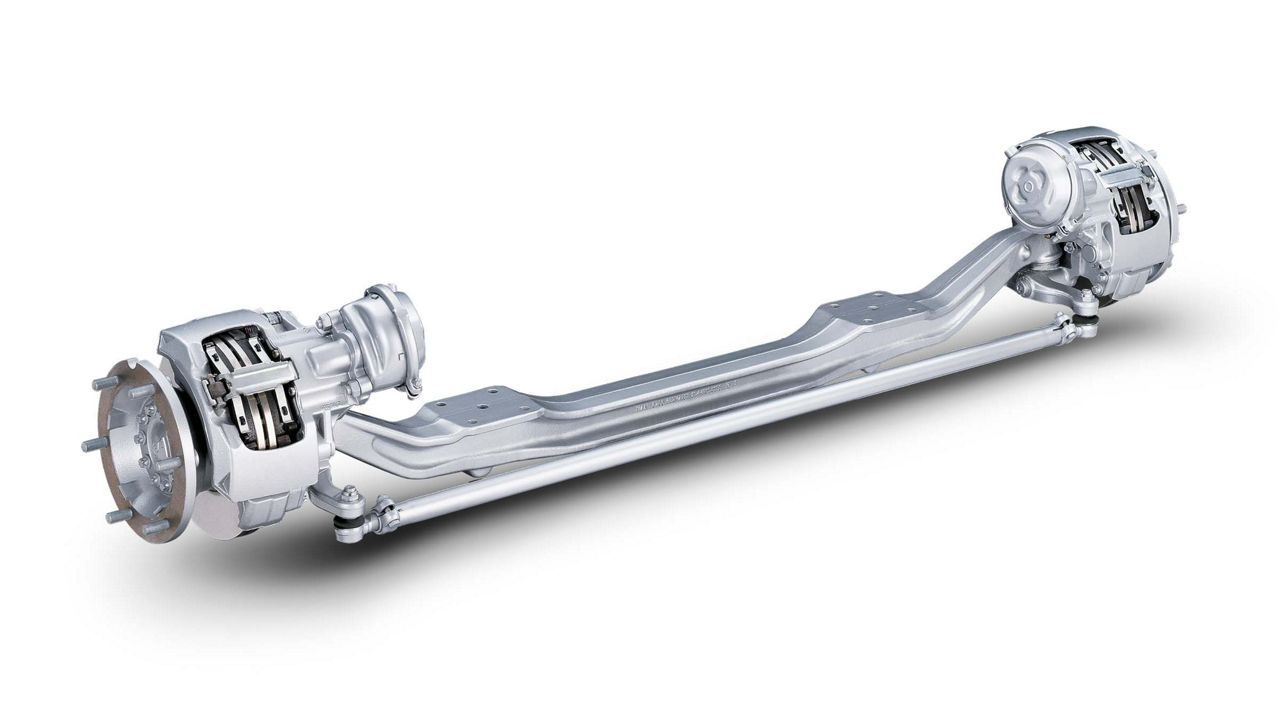

MAN front axle (truck)

MAN front axle (truck)

3.4 – 9.2 tonnes axle load
17.5 – 22.5 inch wheel size
Axle weight without wheels 211 – 565 kg

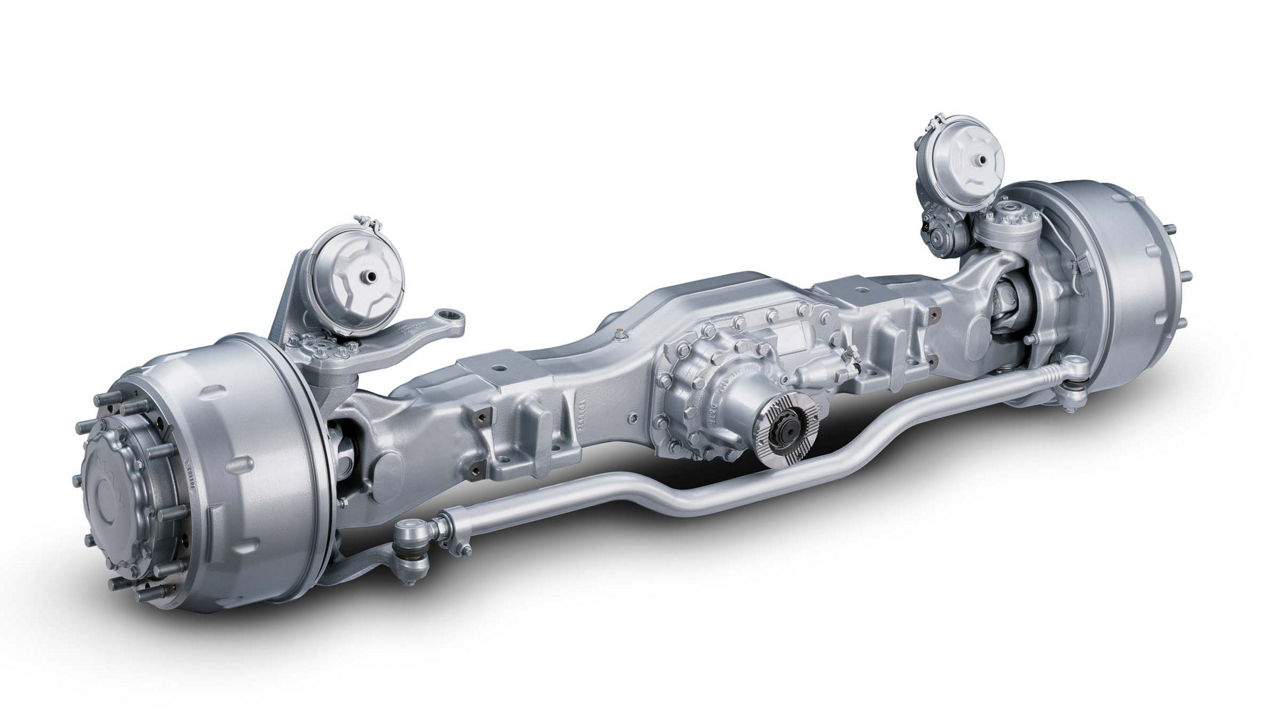

MAN planetary front axle (truck)

MAN planetary front axle (truck)

6.3 – 9.5 tonnes axle load
22.5 inch wheel size
Axle weight without wheels 529 – 881 kg

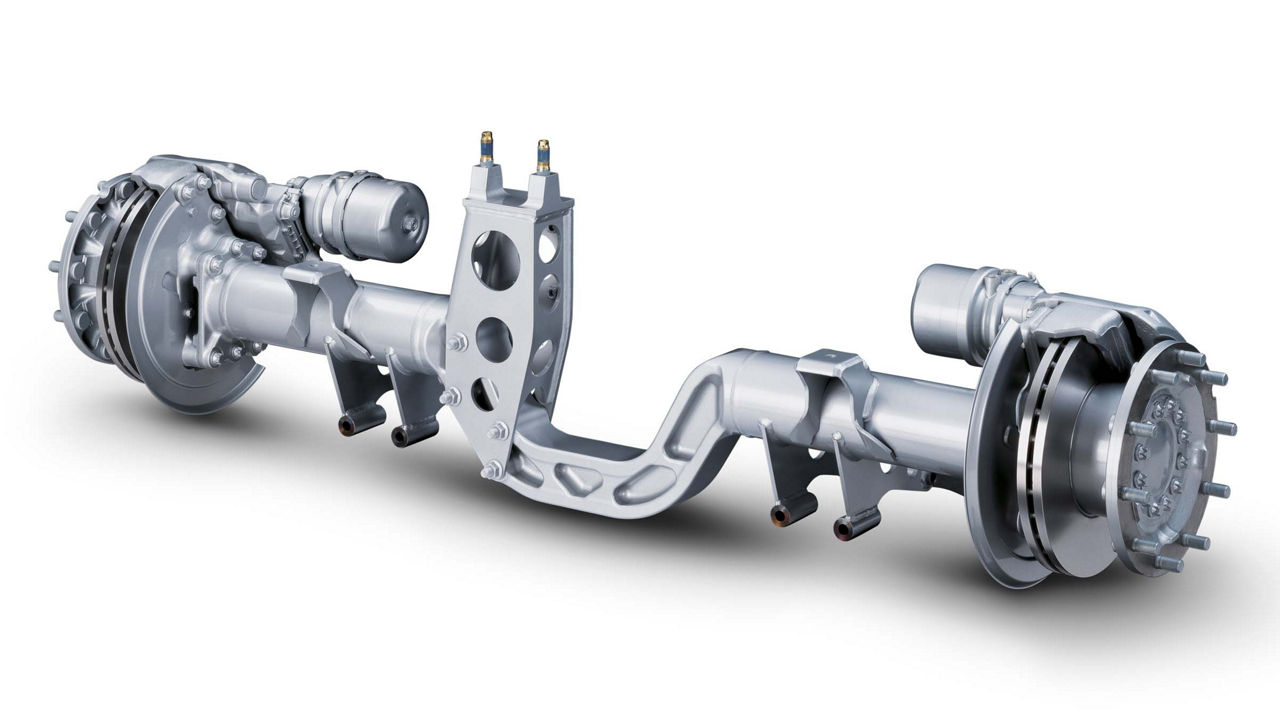

MAN leading axle (truck)

MAN leading axle (truck)

6 – 10.5 tonnes axle load
19.5 – 22.5 inch wheel size
Axle weight without wheels 388 – 494 kg

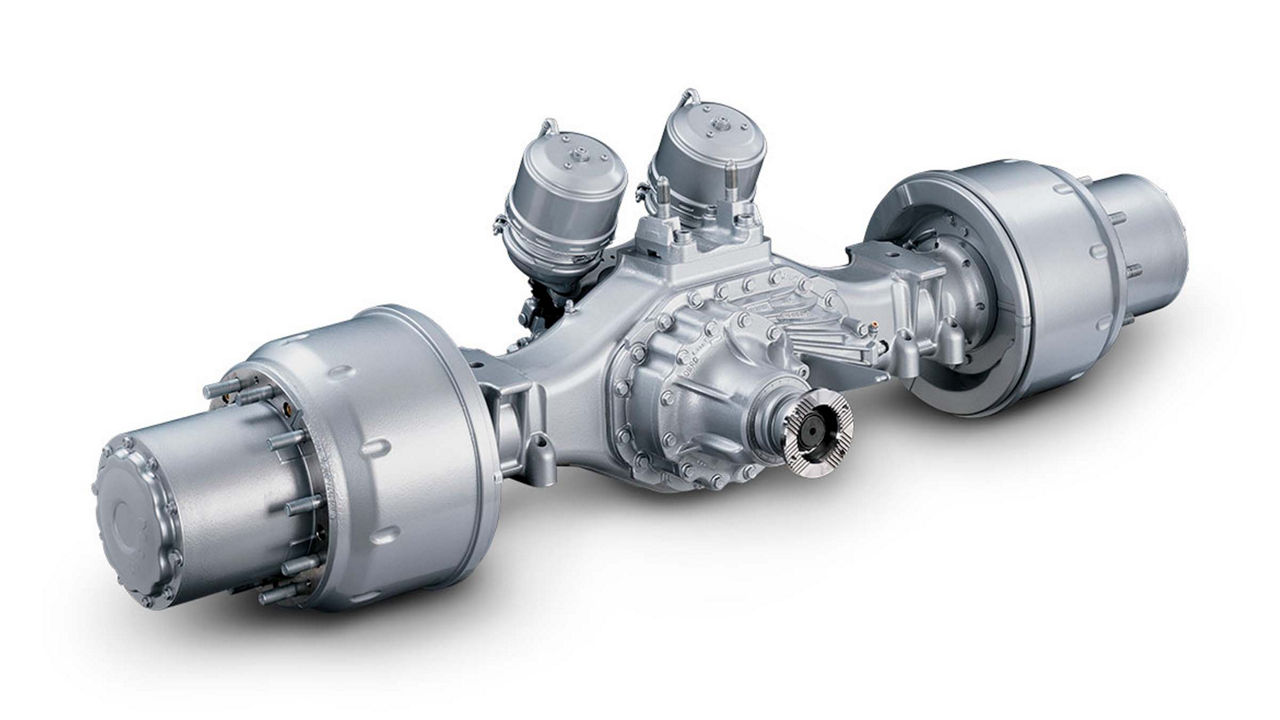

MAN planetary rear axle (truck)

MAN planetary rear axle (truck)

7.8 – 2x16 tonnes axle load
20 – 22.5 inch wheel size
Axle weight without wheels 500 – 940 kg

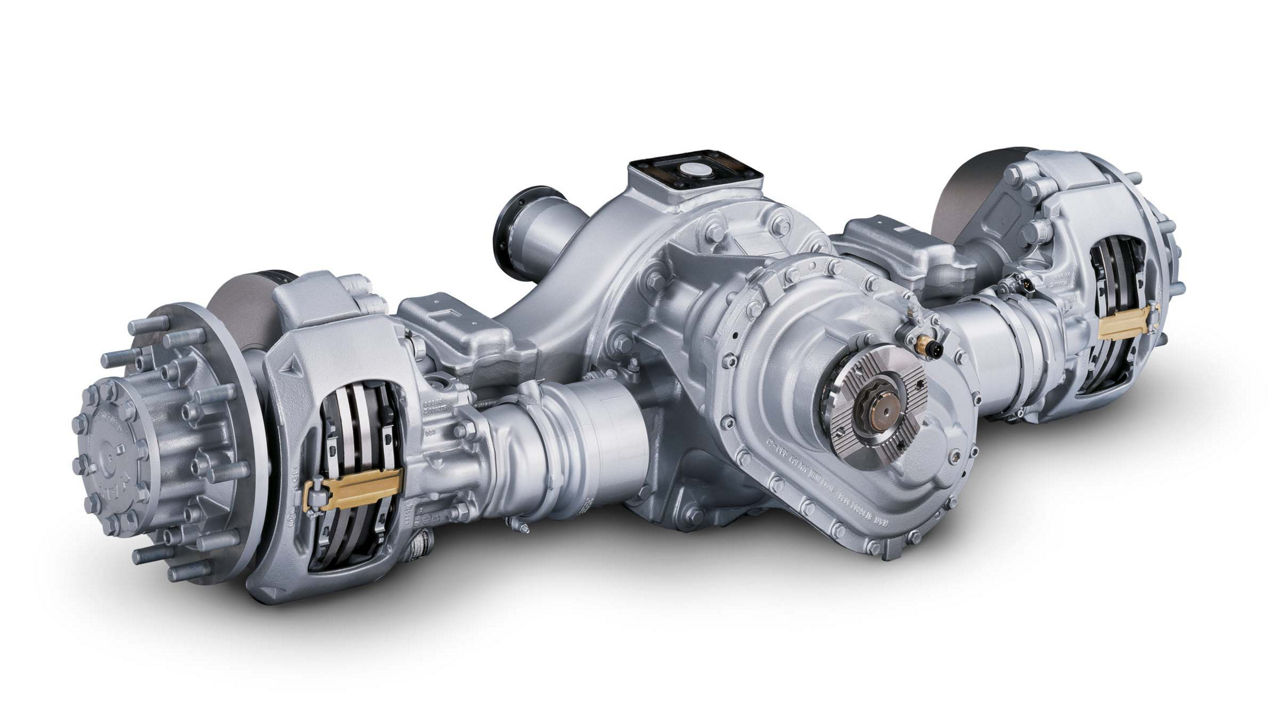

MAN hypoid rear axle (truck)

MAN hypoid rear axle (truck)

6.8 – 2x13 tonnes axle load
17.5 – 22.5 inch wheel size
Axle weight without wheels 302 – 798 kg

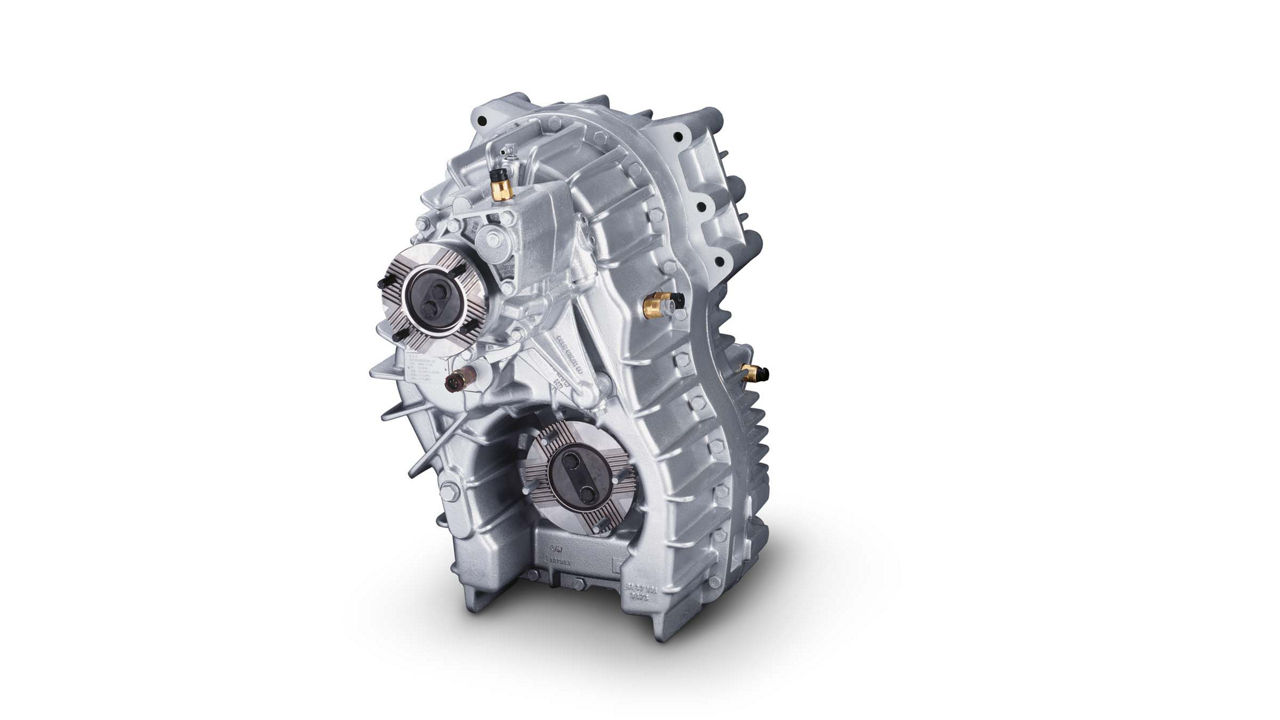

MAN transfer case (truck)

MAN transfer case (truck)

5,600 – 22,000 Nm input torque
24 – 100 tonnes gross train weight
Engine output 230 – 500 kW

Technical data

Low running costs due to long service intervals

maximum axle load in tons	axle model	wheel size in inch	brake type	weight without wheels in kg
3.4 - 10.0	front-axles, non driven	17.5 - 22.5	disc/drum	211 - 479
6.3 - 11.0	planetary hub reduction front axles	20.0/22.5	disc/drum	529 - 931
9.2	front-axles with HydroDrive	9.2	disc	450
7.5 - 10.5	eading and trailing axles	22.5	disc	407 - 494
7.8 - 2x16	planetary hub reduction rear axles	19.5 - 22.5	disc/drum	500 - 940
6.8 - 2x13	hypod rear axles	17.5 - 22.5	disc/drum	302 - 787

maximum axle load in tons	axle model	wheel size in inch	brake type	weight without wheels in kg
7.5 - 9.2	front-axles, non driven	22.5	disc	360 - 470
6.3 - 8.5	Trailing axle	22.5	disc/drum	460 - 515
8.7 - 13	Hypod rear axles	17.5 - 22.5	disc/drum	403- 707
7.2 - 13	102"-axles	22.5	disc	503 - 753

maximum input torque road (off-road) in Nm	maximum haulage weight road (offroad) in Nm	maximum engine rating in kW (hp)	weight with oil in kg
9.000 - 22.000 5.600 - 14.000)	36 - 100 (24 - 55)	220 - 550 (300 - 750)	142 - 436
