MAN gas engine programme for power generation

MAN gas engine programme for power generation

MAN gas engine programme for power generation

Compact gas engines for continuous operation in power- or heat-led systems

Important facts about the product range and applications

MAN Engines offers low-pollution gas engines for purely electrical power generation and cogeneration. The power range extends from 37 kW to 750 kW with natural gas and from 68 kW to 750 kW with special gas (biogas, landfill gas, sewage gas). The MAN engines developed especially for the application with natural and special gas excel through their ultimate reliability and highest energy efficiency. Thanks to their optimum combustion process, they achieve best overall efficiencies in excess of 90 percent.

MAN engines for natural gas and special gas (biogas, landfill gas, sewage gas) ensure security of supply – they have been thoroughly tested and optimised in field trials. The engines have proven themselves through their robustness, combined with high operating hours in peak-load and continuous operation, in the agricultural and municipal sectors, in hotels and hospitals as well as in numerous other industries. The long service intervals and high service life of MAN gas engines ensure low total cost of ownership.

Applications

Cogeneration units with natural gas
Cogeneration units with special gas (biogas, landfill gas, sewage gas)
Genset units with natural gas
Genset units with special gas (biogas, landfill gas, sewage gas)

MAN gas engines at a glance

The perfect synthesis of performance and economy

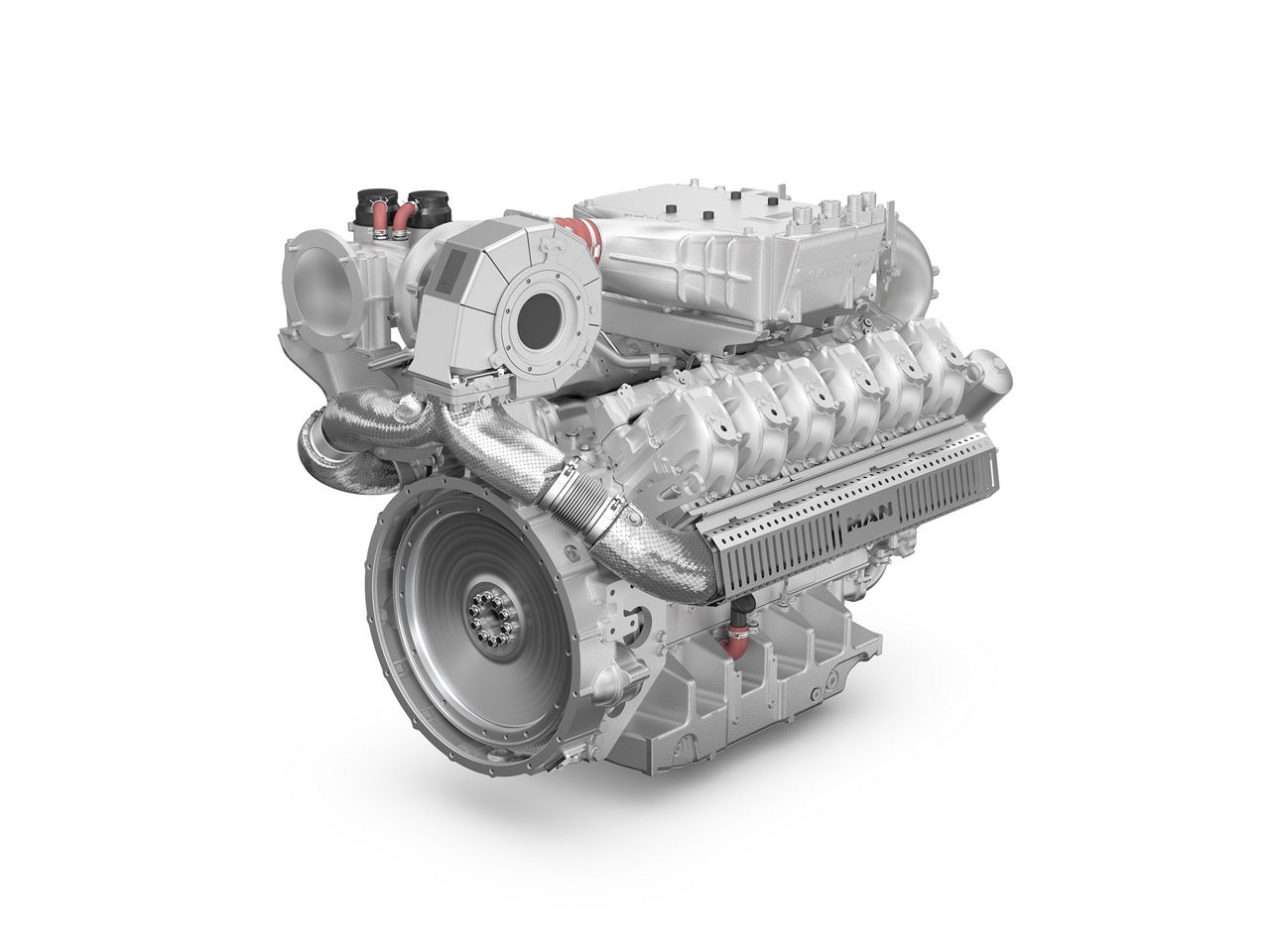

MAN E3872

12 cylinders. 29.6 litres displacement
Bore 138 mm, stroke 165 mm
Power 735 kW

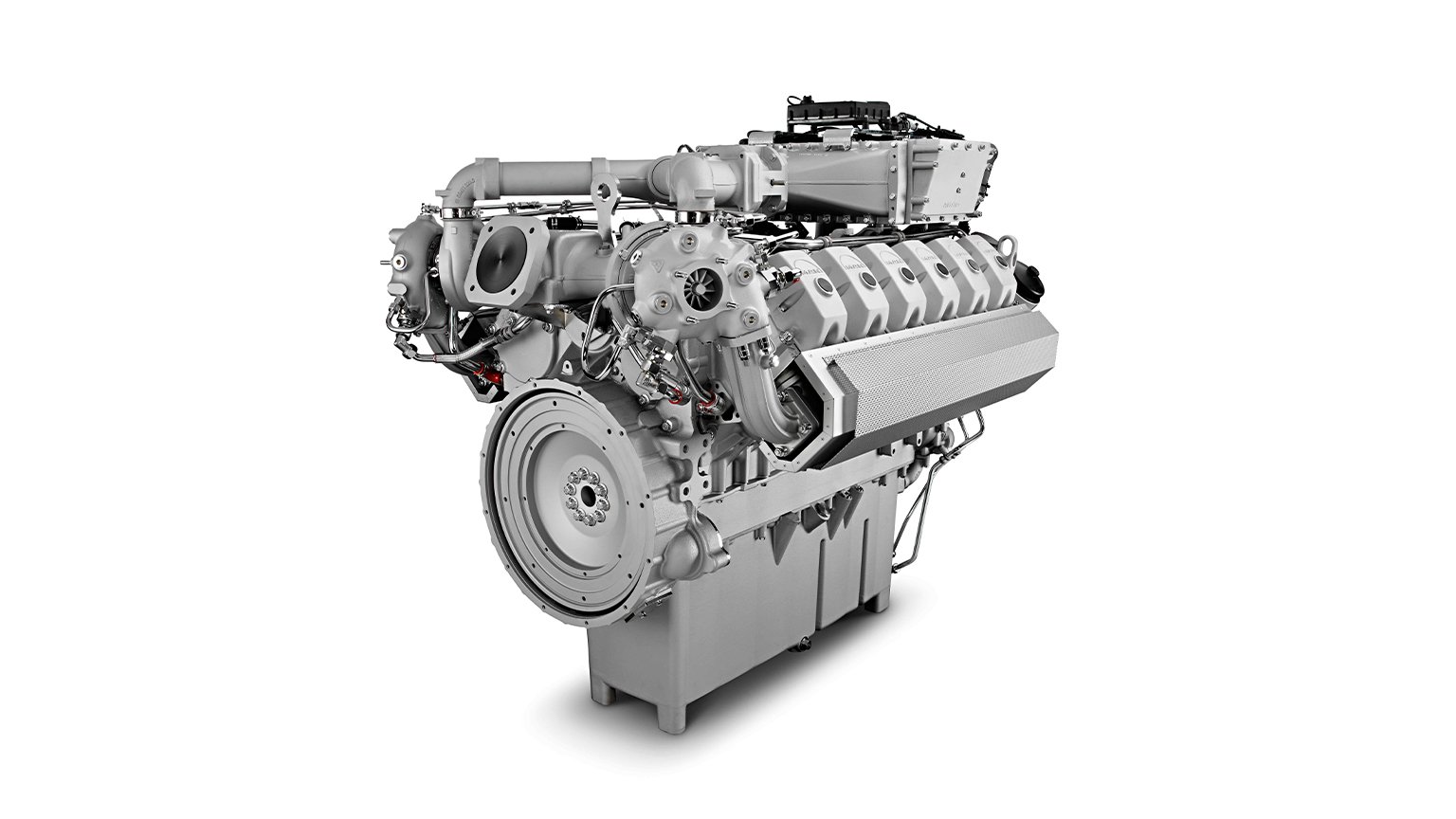

MAN E3262

12 cylinders. 25.8 litres displacement
Bore 132 mm, stroke 157 mm
Power 275 – 580 kW

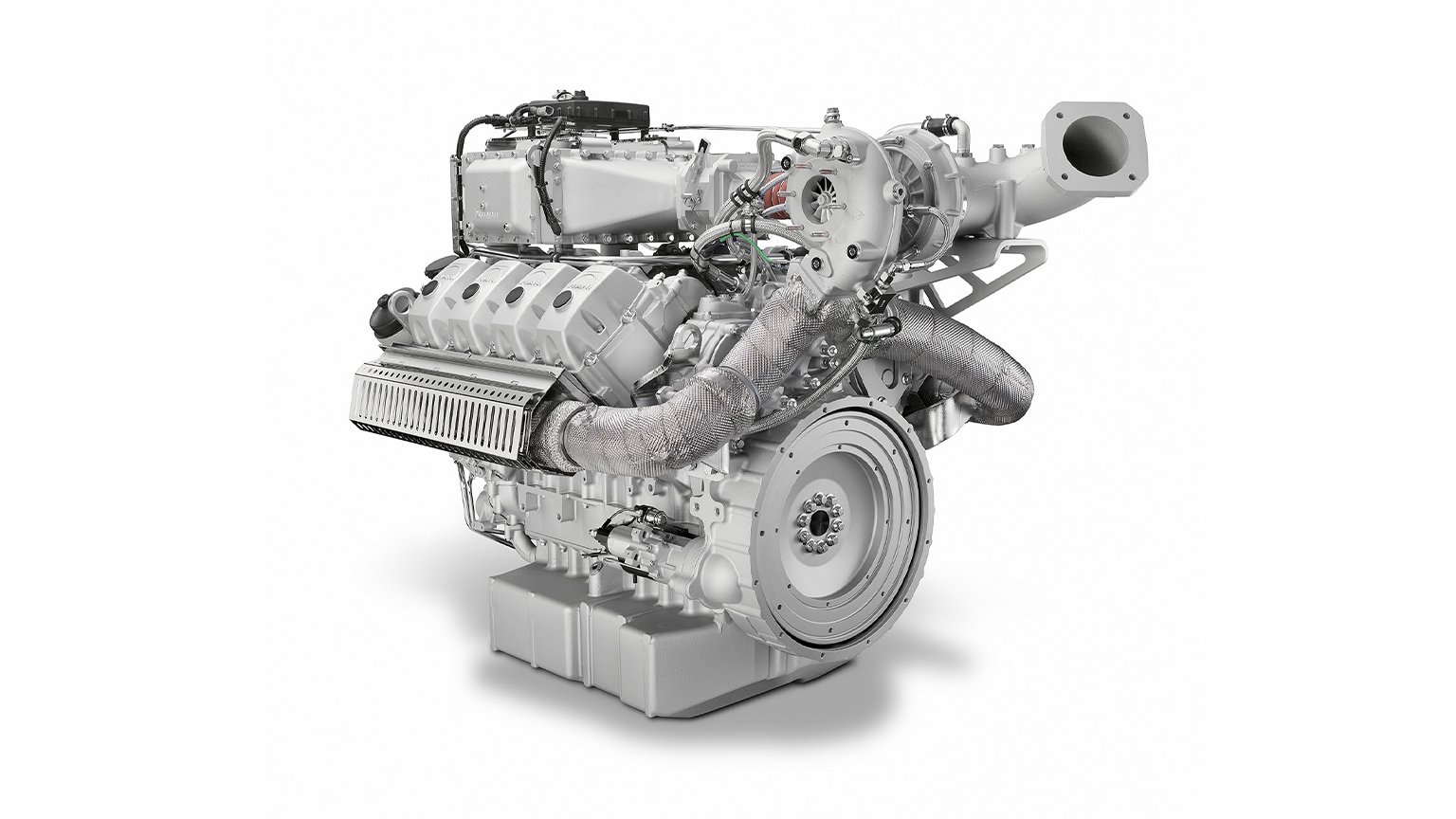

MAN E3268

8 cylinders. 17.2 litres displacement
Bore 132 mm, stroke 157 mm
Power 320 – 390 kW

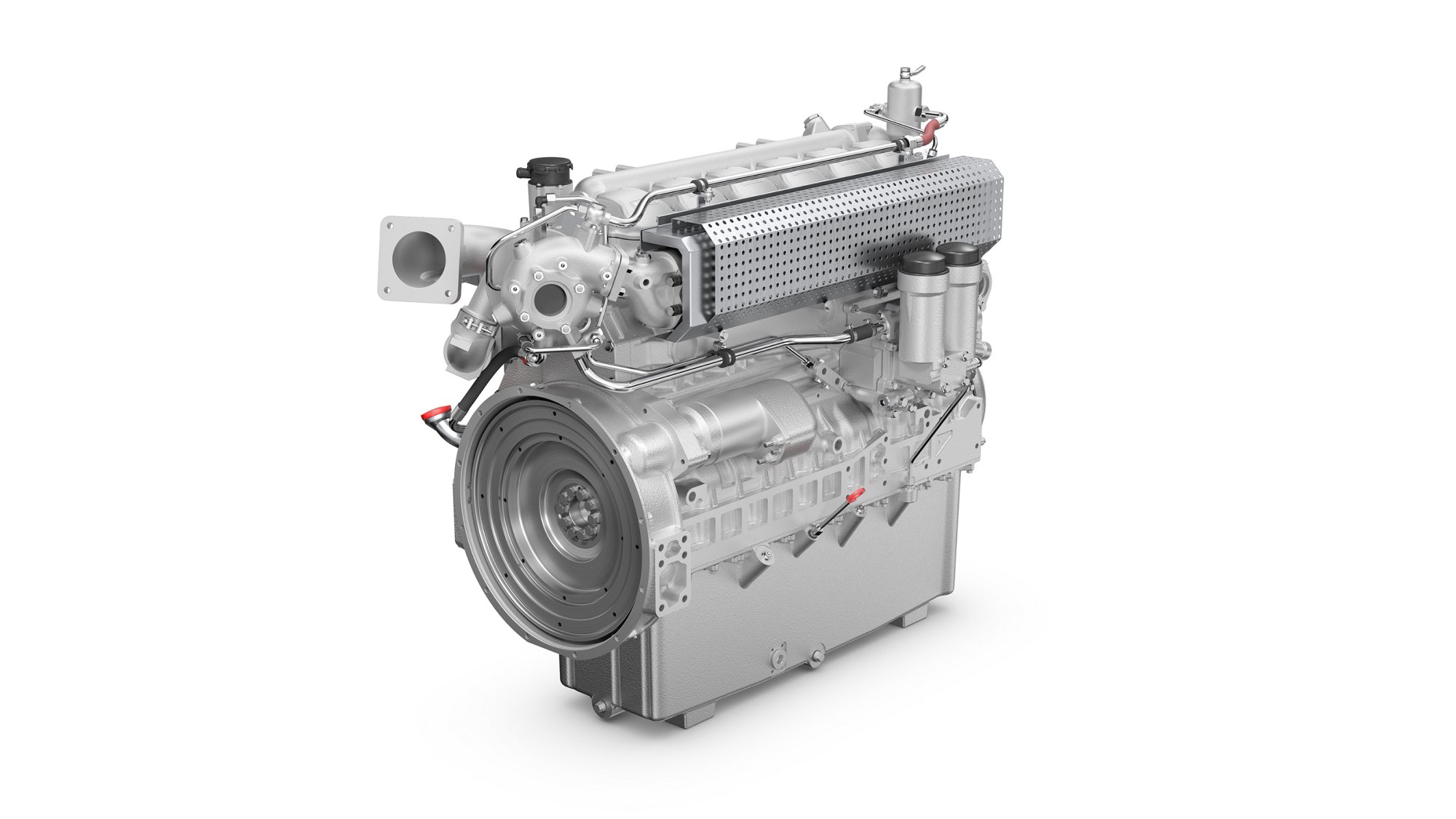

MAN E2876

6 cylinders. 12.8 litres displacement
Bore 128 mm. Stroke 166 mm
Power 130 – 220 kW

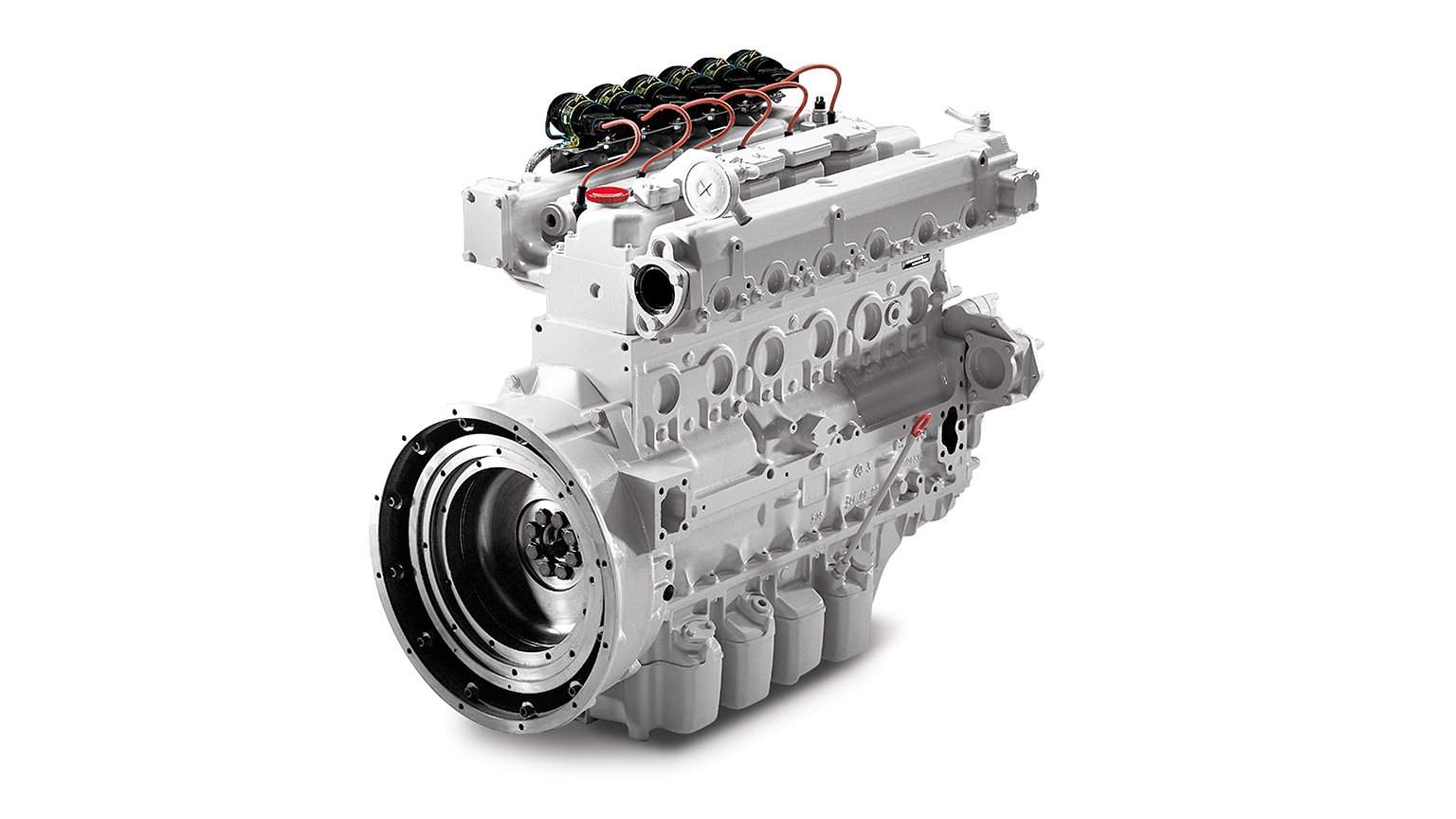

MAN E0836

6 cylinders, 6.9 litres displacement
Bore 108 mm, stroke 125 mm
Power 56 – 110 kW

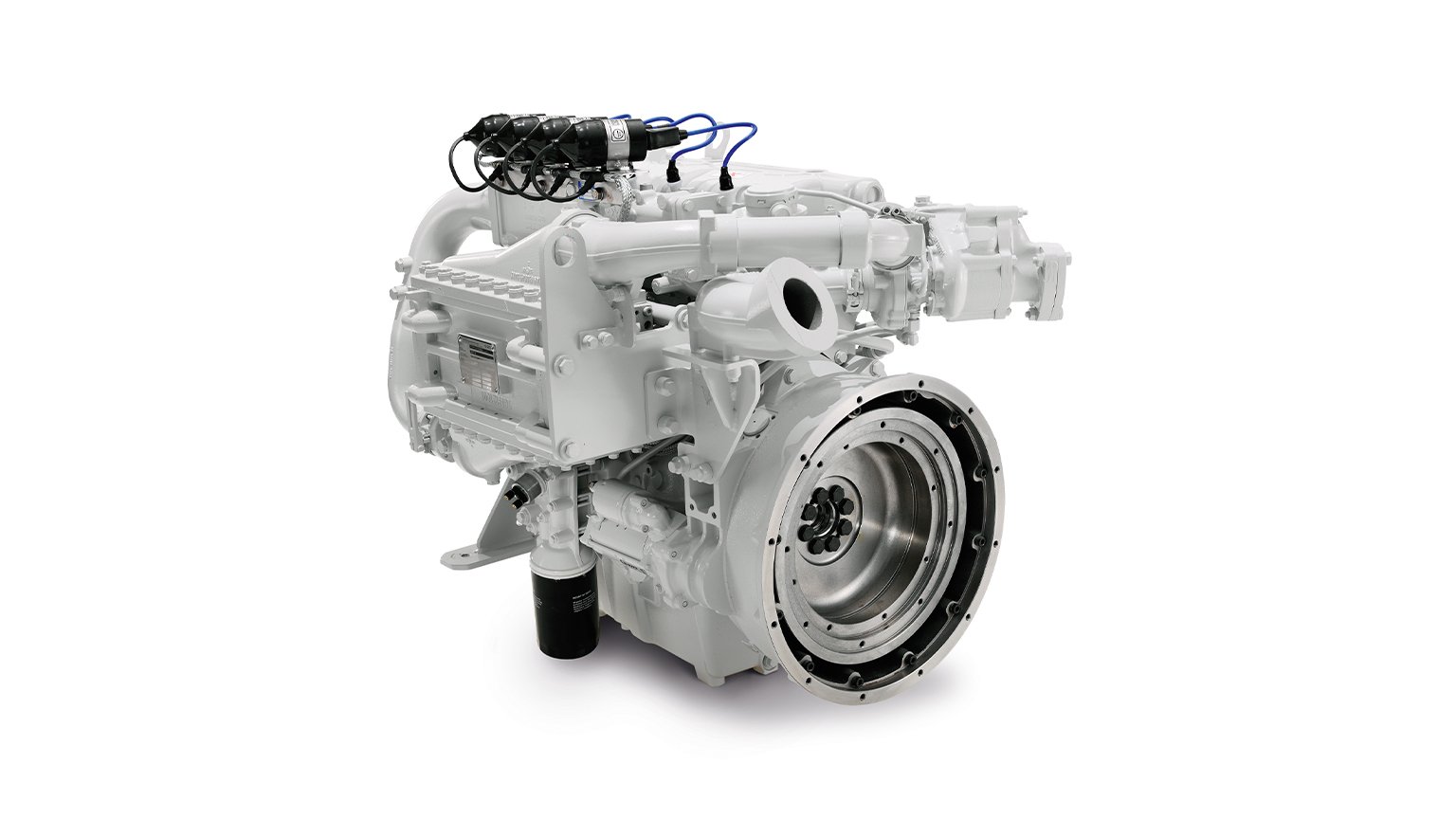

MAN E0834

4 cylinders. 4.6 litres displacement
Bore 108 mm, stroke 125 mm
Power 37 – 68 kW

MAN E2876
MAN E0836
MAN E0834

Technical data

Long overhaul intervals and long service life thanks to compact design

Output in kW	Air/fuel ratio λ	Engine model	Cylinders	Model	Displacement in litres
37 – 68	1.0 – 1.6	E0834	4	in-line	4.6
56 – 110	1.0 – 1.68	E0836	6	in-line	6.9
150 – 210	1.0 – 1.61	E2876	6	in-line	12.8
320 – 390	1.69	E3268	8	V 90°	17.2
275 – 580	1.0 – 1.7	E3262	12	V 90°	25.8
735	1.77 - 1.78	E3872	12	V 90°	29,6

Output in kW	Air/fuel ratio λ	Engine model	Cylinders	Model	Displacement in litres
68	1.4/1.5	E0834	4	in-line	4.6
110	1.4 – 1.49	E0836	6	in-line	6.9
130 – 220	1.40	E2876	6	in-line	12.8
320 – 390	1.46 – 1.52	E3268	8	V 90°	17.2
450 – 580	1.44 – 1.6	E3262	12	V 90°	25.8
735	1.61	E3872	12	V 90°	29.6
