MAN D2862 engine for commercial shipping

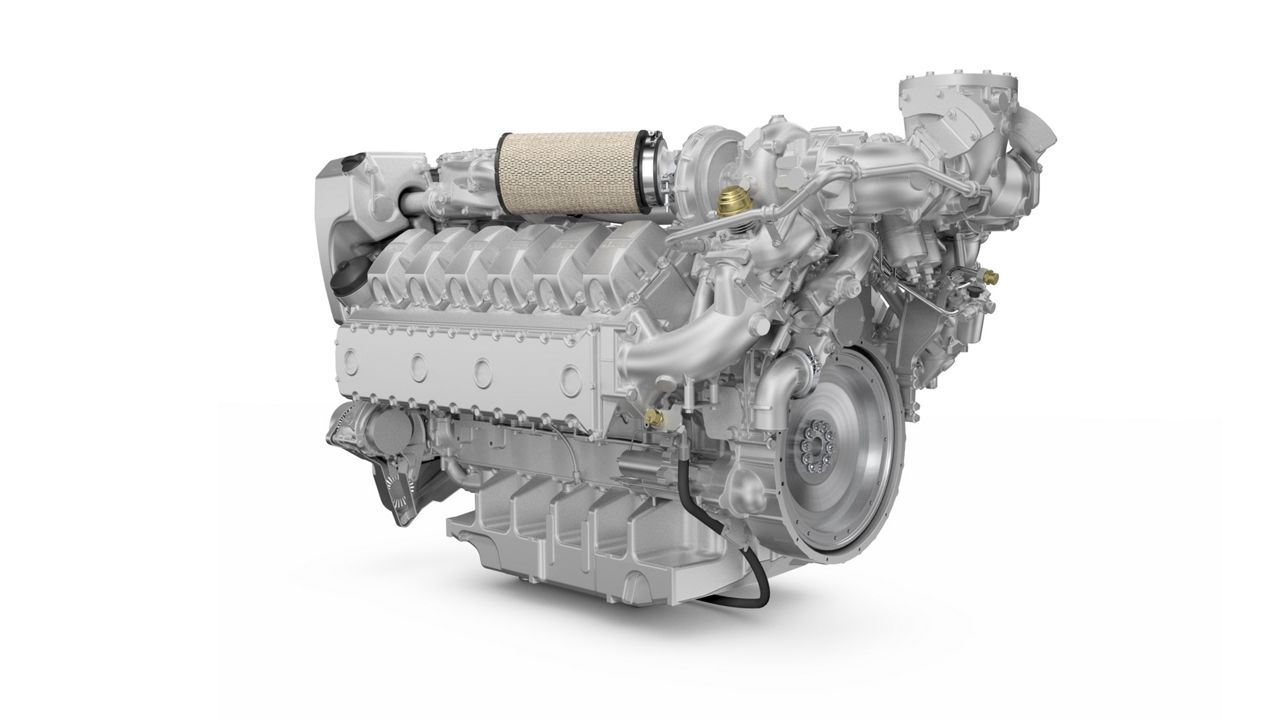

MAN D2862

1.000 HP in heavy-duty operation: the MAN D2862 LE44x

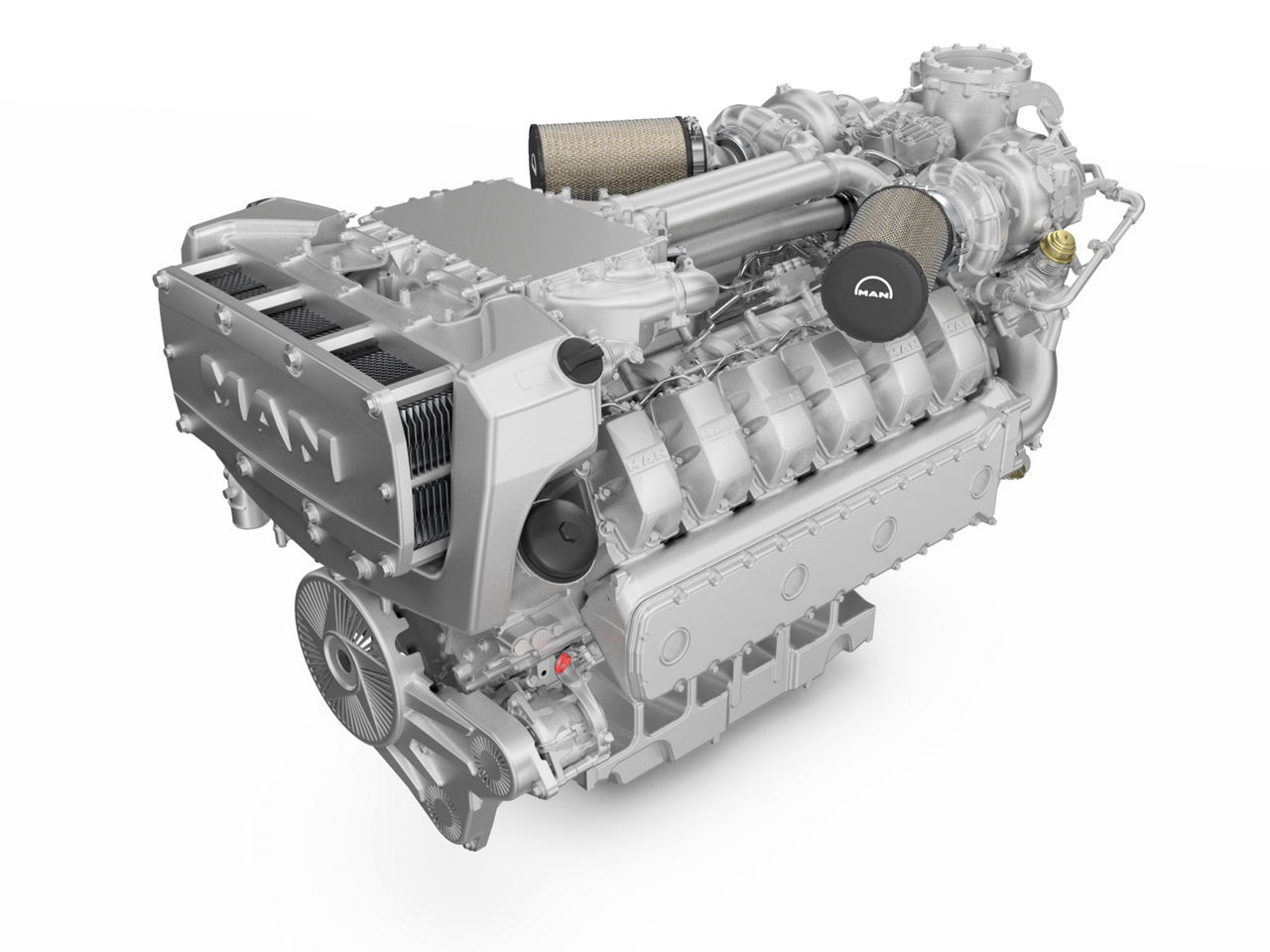

MAN D2862 LE44x

In the heavy-duty sector, the V12 engine D2862 LE44x with 735 kW (1,000 HP) is at the top of the MAN engine portfolio for workboats.

The engine is available in three versions: D2862 LE441 for IMO Tier 2 emission standard, D2862 LE444 for EPA Tier 3 Commercial and D2862 LE44A for EU Stage V. By adjusting the turbocharger and the valve timing, it was possible to raise the mean pressure and increase the power by 73 kW (100 HP) compared to the original most powerful engines.

The efficient MAN D2862 LE44x marine engine is based on the latest engine platform. With its increased power and a dry weight of 2,270 kg, it offers excellent power density for heavy-duty applications such as tugs and cargo vessels. With 24.24 litre displacement, 128 mm bore and 157 mm stroke, the powerful MAN marine engine achieves a maximum torque of 4,380 Nm at 1,100 to 1,600 rpm.

The MAN D2862 LE44x is particularly efficient when considering the total life cycle costs: In terms of specific consumption under full load at maximum torque, the 12-cylinder engine shines with a minimum consumption of 192.3 g/kWh.

An additional benefit are the extended intervals for oil change (600 hours) and basic overhaul (18,000 operating hours). Individually mounted cylinder heads also ensure easy servicing, which allows MAN’s solid engine to shine when it comes to cost-effectiveness calculations.

The identical engine base positions and the same installation dimensions as with the previous series ideally simplify remotorisation projects. Compactly scaled at 2,124 mm x 1,153 mm x 1,28 mm (length x width x height), the 735 kW MAN 12-cylinder engine has an outstanding power density. The new D2862 LE44x also joins the ranks of reliable MAN engines: Many years of experience with engines as well as in-house development, design and production at the International Engine Competence Centre in Nuremberg ensure the high quality of MAN marine engines.

In addition, the D2862 has passed numerous field tests as well as on-site measurements with flying colours. The fact that each MAN engine produced is subjected to a test run, provides customers with individual assurance that they will receive familiar MAN quality. The type approval of the D2868 and D2862 marine engines with various classification societies rounds off the overall picture of reliable and efficient MAN marine engines.

Performance data 1
Rated power 735 kW / 1,000 HP
Speed 1,800 rpm
Nominal torque 3,900 Nm
Maximum torque 4,380 Nm between 1,100 – 1,600 rpm
Bore 128 mm
Stroke 157 mm
Displacement 24.24 l
Engine description
Operating mode unlimited annual operating hours at 100 % full load share
Construction Four-stroke marine diesel engine with direct injection and SAE 1 flywheel housing
Cylinders 12 cylinders in 90° V design
Suction System single-stage turbocharger with charge air cooling and wastegate
Cooling system seawater-cooled charge air cooler and plate-type heat exchanger
Fuel system Common Rail injection with high-pressure pump and EDC control
Classification GL, RINA, LR, ABS, BV, DNV, NKK, RMRS, CCS, CRS
Exhaust status EU Stage V, EPA Tier 3 Commercial, IMO Tier 2
Main dimensions
Length x width x height 2,124 x 1,153 x 1,289 mm
Height of engine top edge to crankshaft centre 825 mm
Length to edge of flywheel housing 1,631 mm
Dry weight 2,270kg
  1. Values at rated power
