Stationary gas engines in marine use

Stationary gas engines in marine use
In focus:

The Dutch shipyard Concordia Damen will build the enormous number of 40 new Parsifal inland waterway barges by the end of 2024. MAN Engines plays an important role in this process and is supplying 80 MAN E3262 gas engines. The 12-cylinder engines are installed in gensets from the Dutch partner MAN Rollo. In combination with electric motors, each two of the gas engines, which deliver a total of 990 kW, form the hybrid drive of the low-emission tankers. The gas engines are powered by LNG (liquefied natural gas). For use as fuel in MAN gas engines, LNG is first converted back into a gaseous state by evaporators.

MAN Concordia Damen

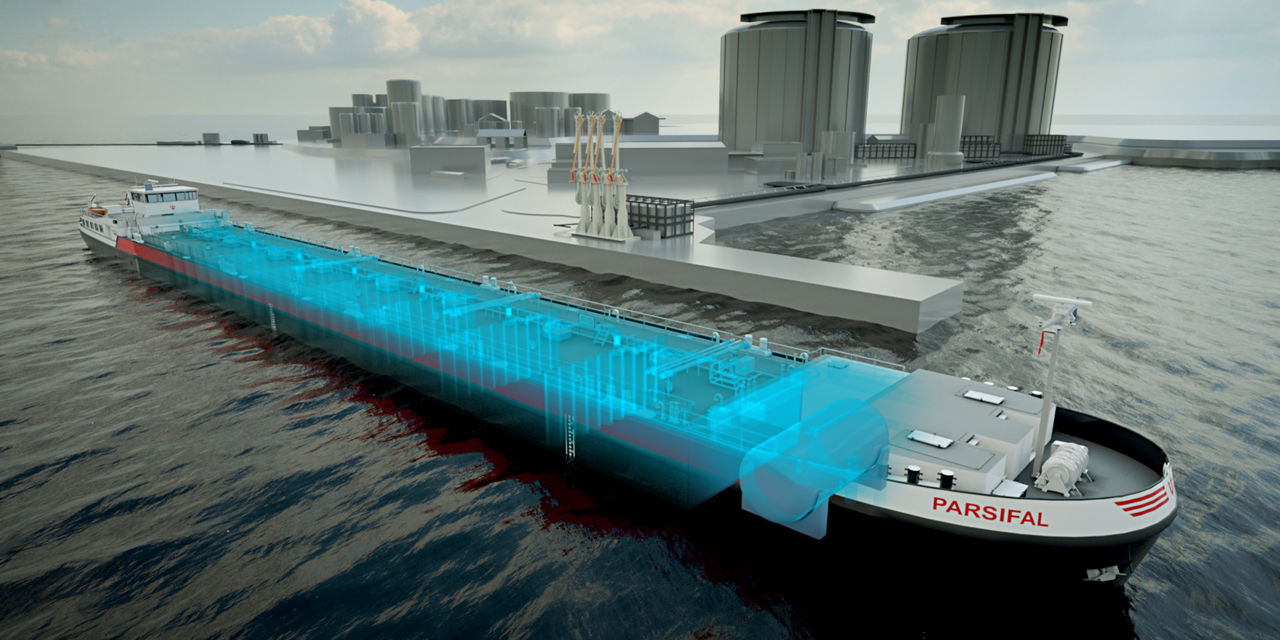

© Concordia Damen. The 110 m long and 11.5 m wide Parsifal tankers from the Concordia Damen shipyard can transport 2,800 tonnes in 3,000 cubic metres.

MAN Blue Marjan

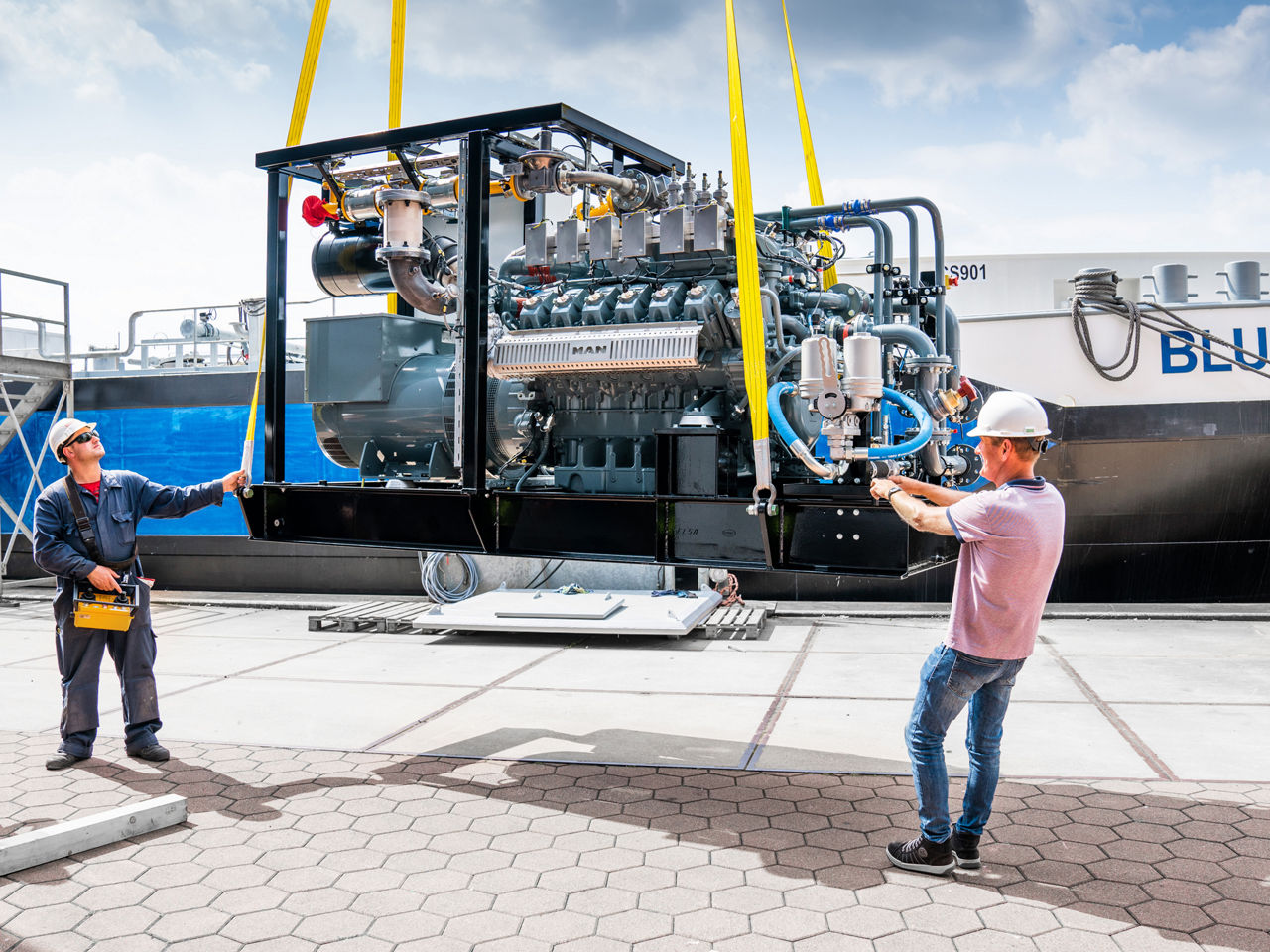

© MAN Rollo. “Blue Marjan” is the first tanker of the 40-ship fleet to be launched. The genset from MAN Rollo with MAN E3262 gas engine shown here has a total weight of 5.4 tonnes (dry).

For the Parsifal project, MAN Engines is supplying a certified gas engine (including engine control system and ignition system) which has been approved in accordance with the latest and strict EU Stage V inland navigation emissions regulations. This regulation has been valid since 2020 and applies to the entire European market. For workboats, MAN Engines offers a wide portfolio of diesel engines for main propulsion as well as fixed-speed diesel and gas engines.

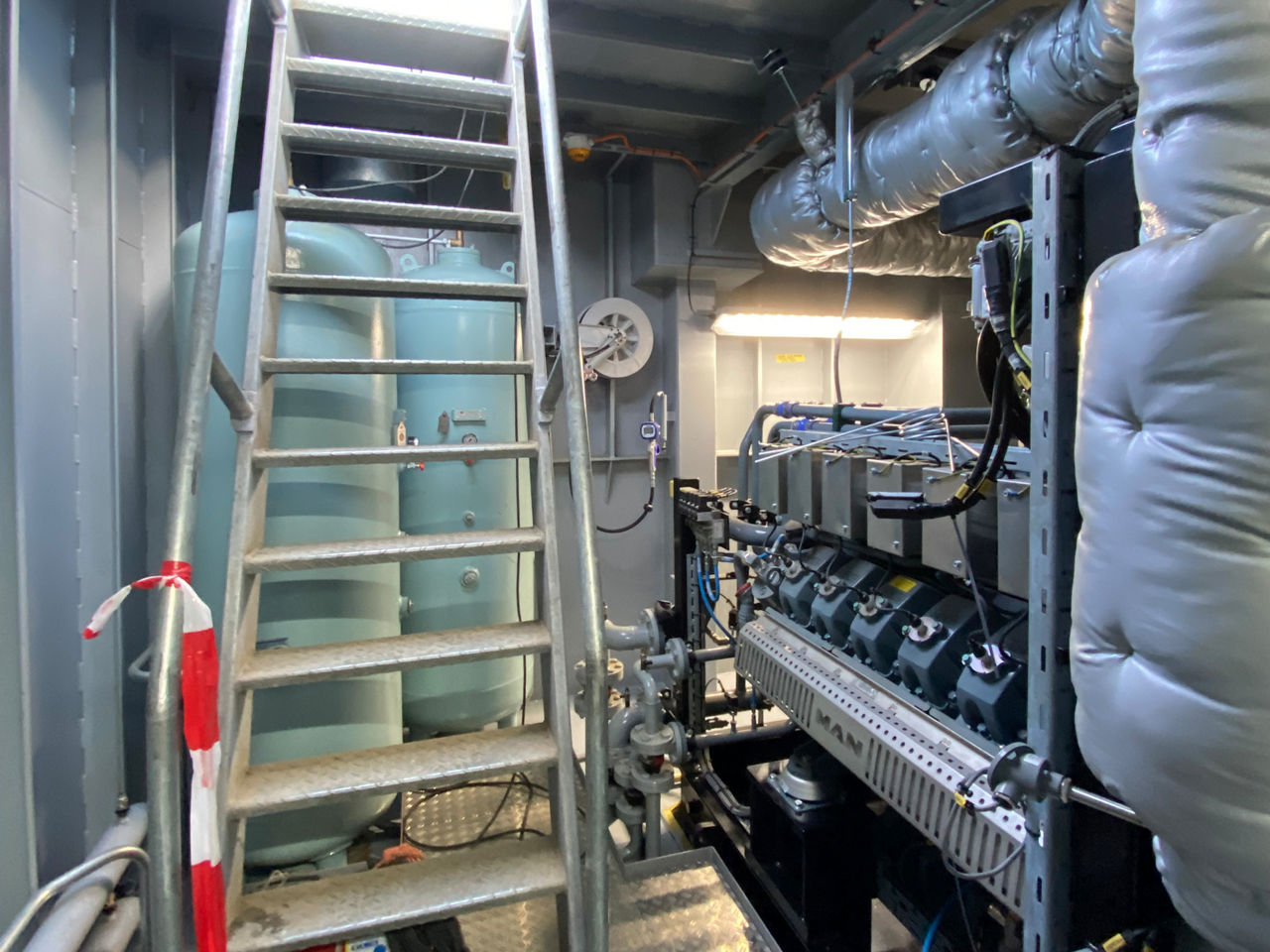

View into the engine compartment of the Parsifal tanker

© MAN Rollo. View into the engine compartment of the Parsifal tankers.

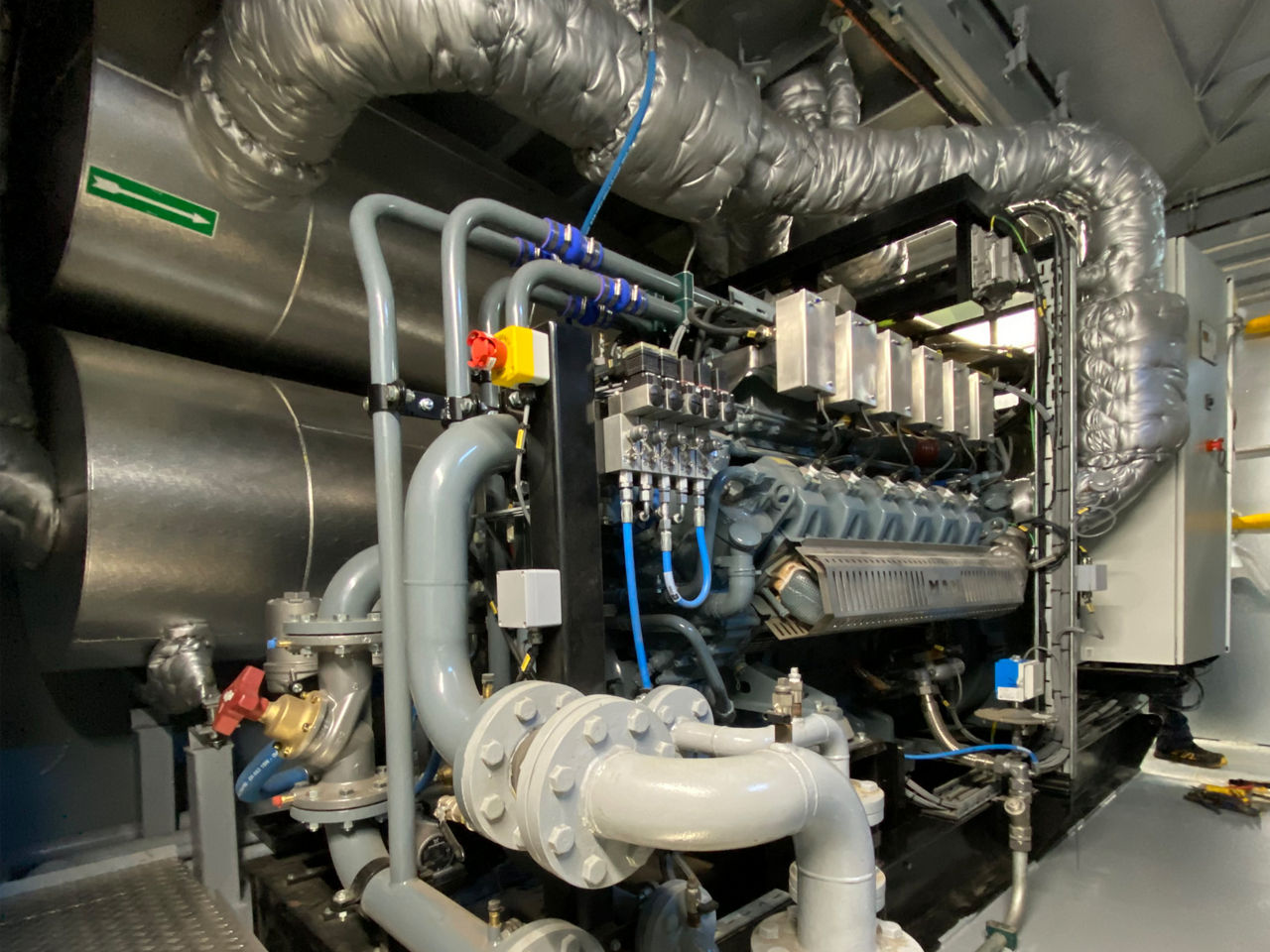

© MAN Rollo. Two MAN E3262 gas engines together generate 990 kW of hybrid engine power.

© MAN Rollo. Two MAN E3262 gas engines together generate 990 kW of hybrid engine power.

Overview of the gensets with MAN E3262 gas engine

/

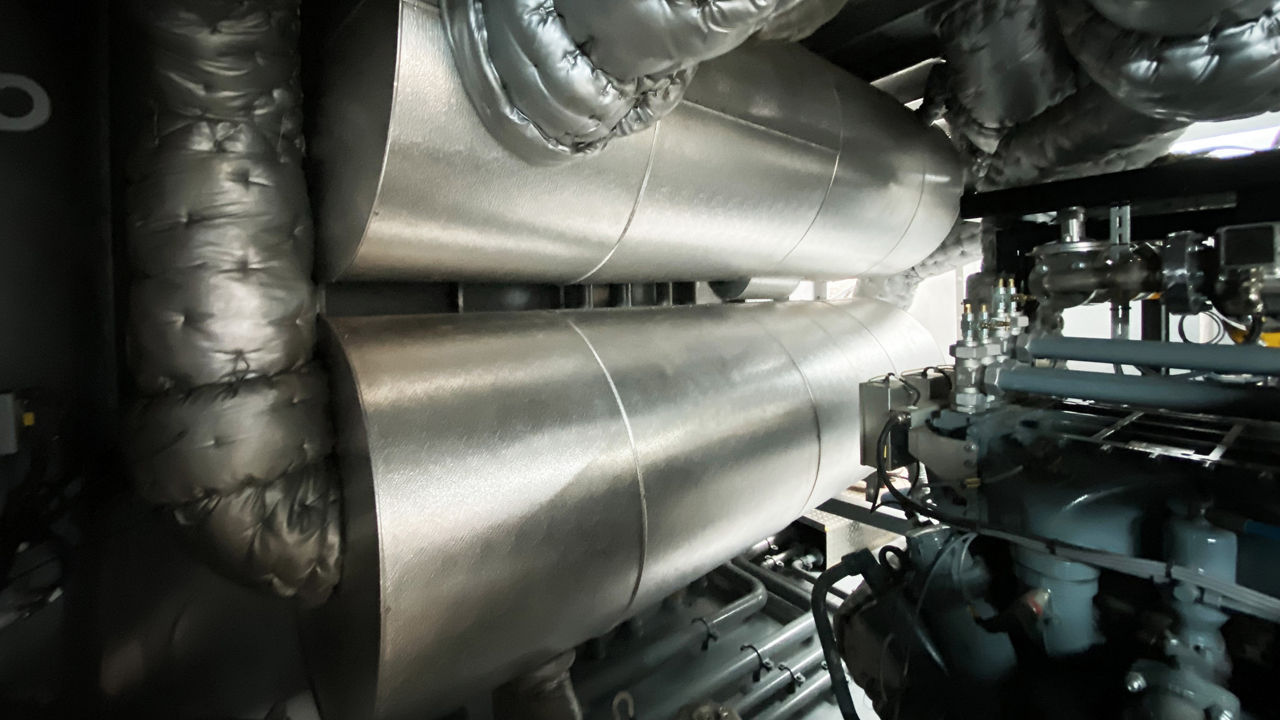

Exhaust silencer for acoustics

Exhaust silencer for acoustics

/

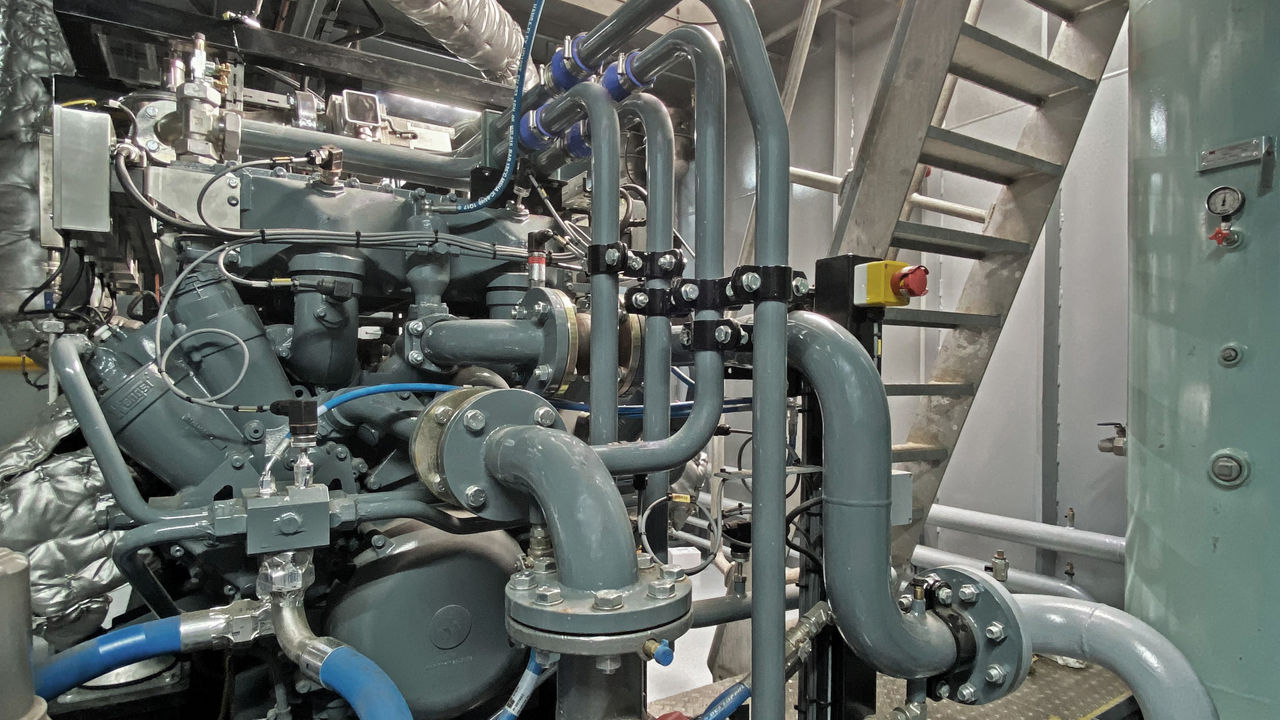

Engine and mixture cooling piping

Engine and mixture cooling piping

/

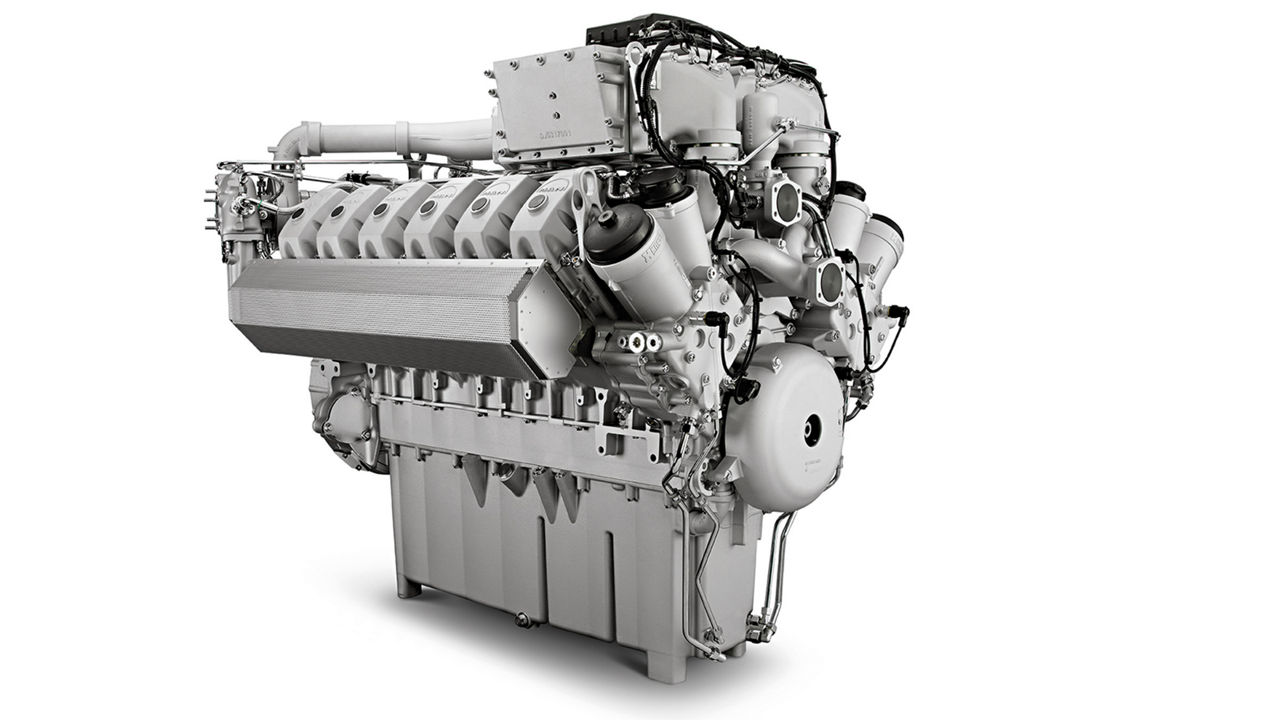

Gas engine E3262

Gas engine E3262

/

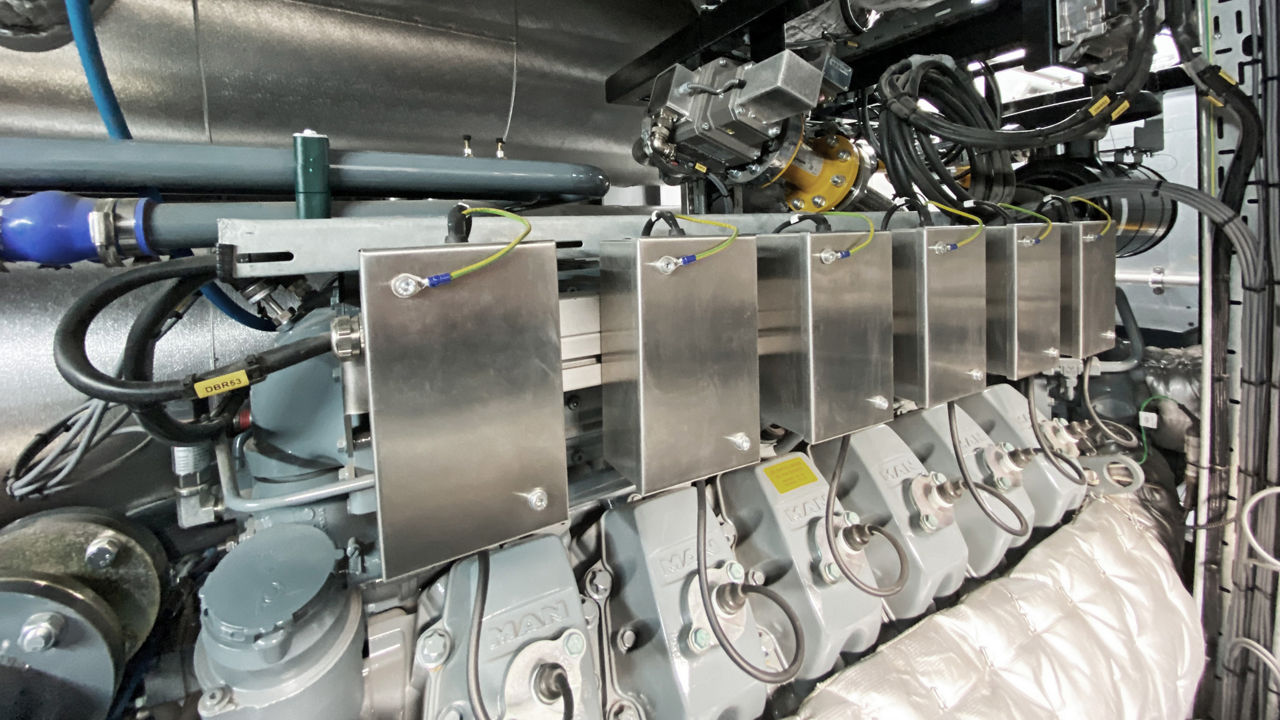

Housed ignition coils

Housed ignition coils

/

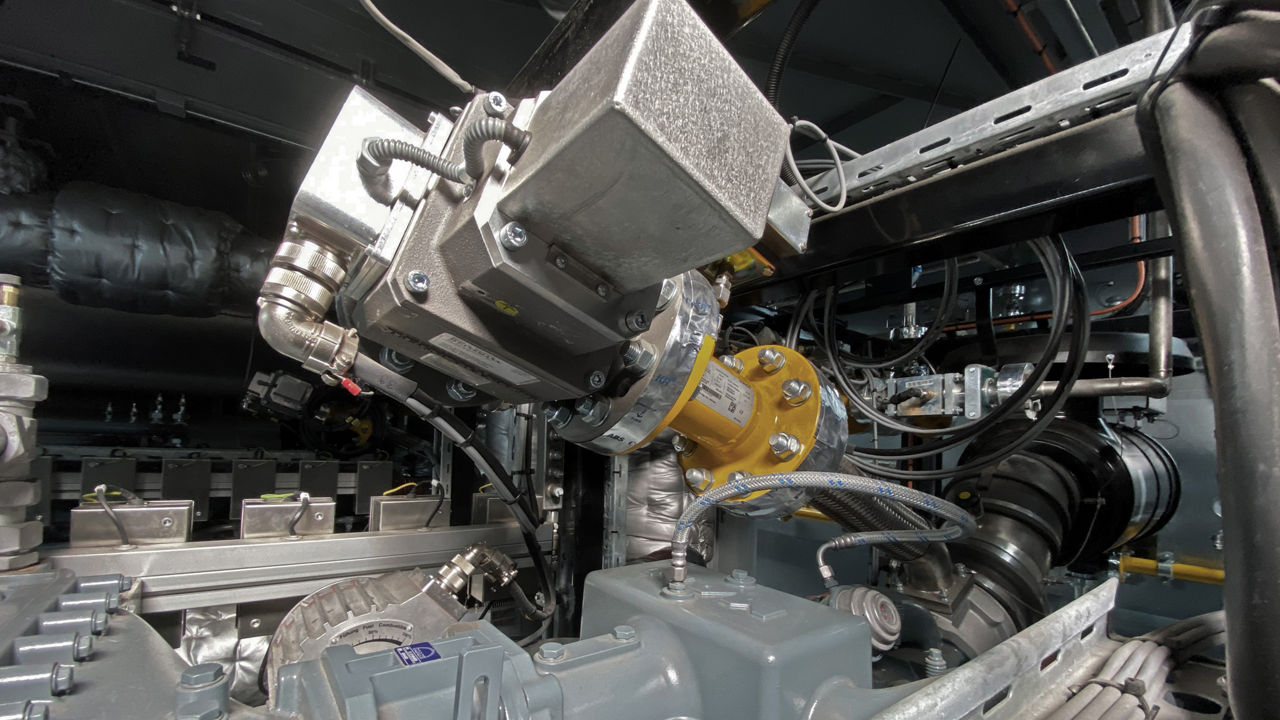

Gas supply with control valve

Gas supply with control valve

/
Exhaust silencer for acoustics

Exhaust silencer for acoustics

/
Engine and mixture cooling piping

Engine and mixture cooling piping

/
Gas engine E3262

Gas engine E3262

/
Housed ignition coils

Housed ignition coils

/
Gas supply with control valve

Gas supply with control valve

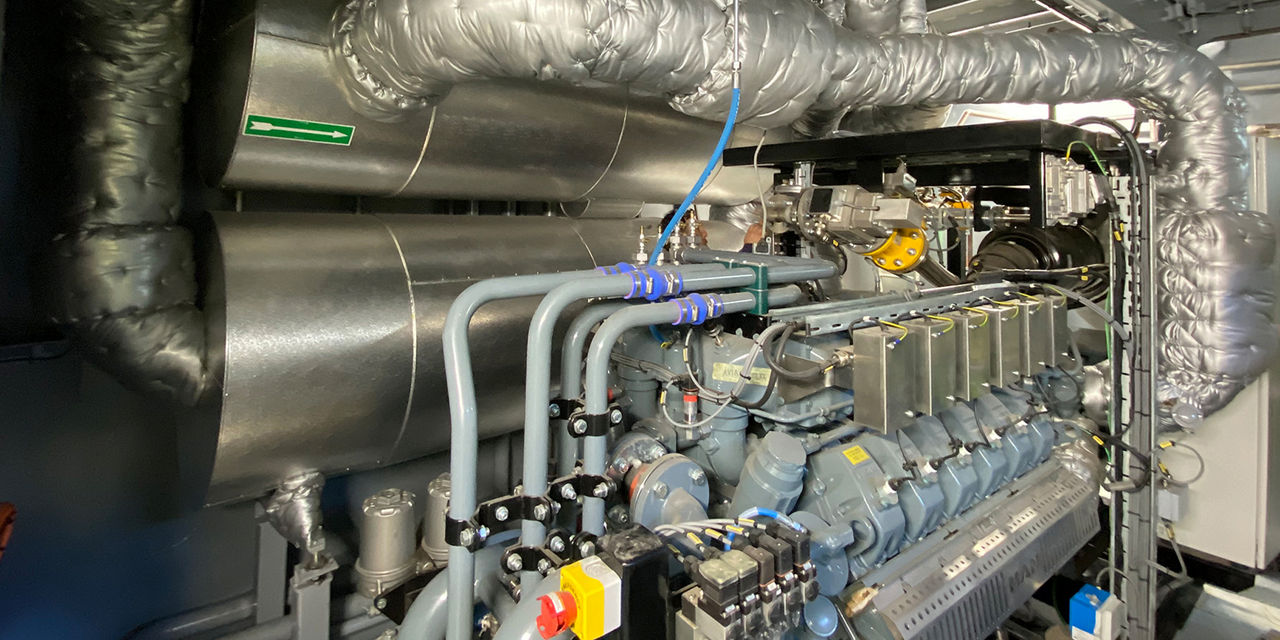

© MAN Rollo. Overview of the gensets with MAN E3262 gas engine
