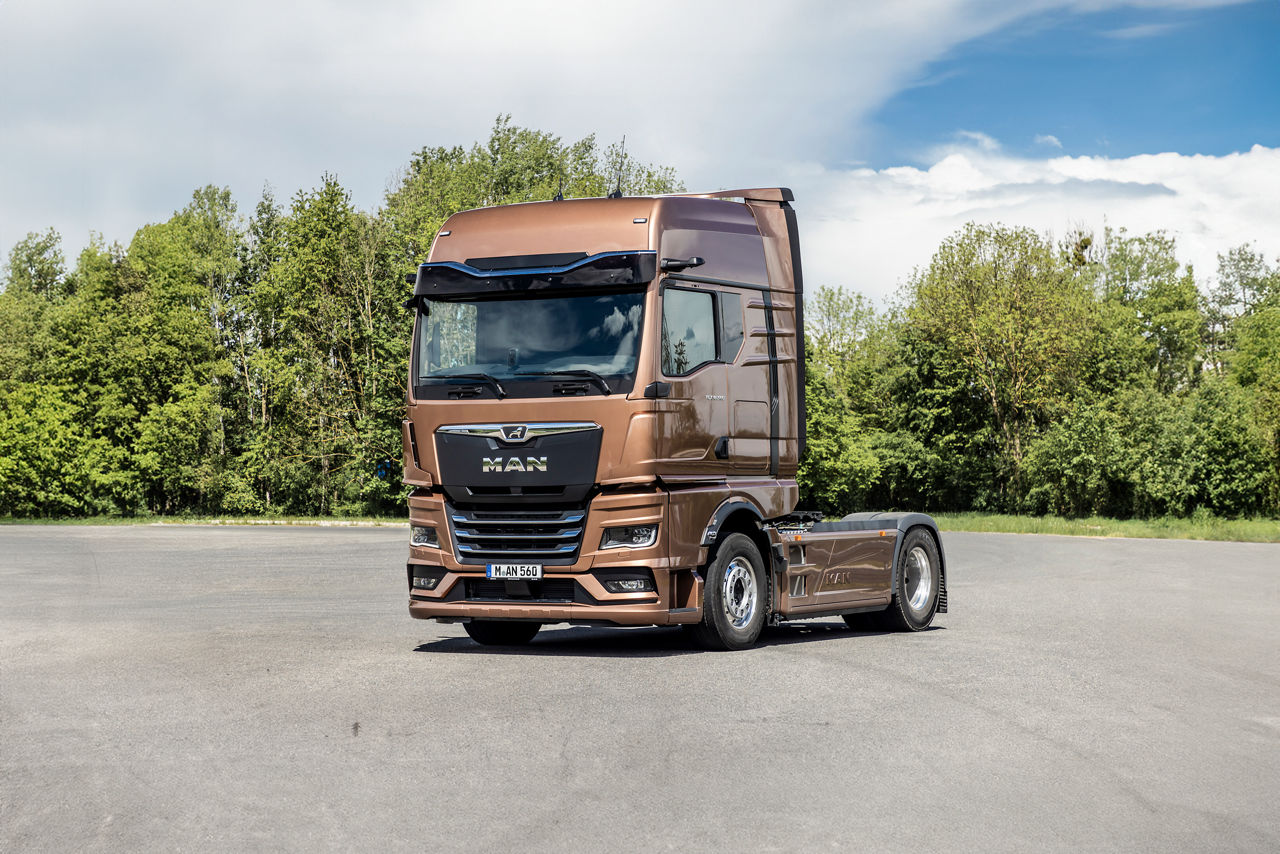

MAN TGX – Specifications

  Tractor Chassis
4x2 _
4x4 _ _
6x2- _
6x2 _
6x4 _
6x4- _ _
6x6 _ _
8x2- _ _
8x4 _ _
8x4/ 8x4- _ _
8x6
8x8
_ _
Engine series Cylinder, design Displacement [Liter] Performance [kW (PS)]
D2676 6 in-line 12.4 397(540) in Euro 5 emission standard
353(480) in Euro 5 and Euro 2 emission standards
324(440) in Euro 2 emission standard
D2066 6 in-line 10.5 324 (440) in Euro 5 emission standard
294 (400) in Euro 5 and Euro 2 emission standards
265 (360) in Euro 5 and Euro 2 emission standards
  GX cab:
The maximum (wide, long, extra high)
GM cab:
The generous (wide, long, medium high)
GN cab:
The spacious (wide, long, standard height)
Main dimensions
External length 2,280 mm 2,280 mm 2,280 mm
External width 2,440 mm 2,440 mm 2,440 mm
Interior length 2,145 mm 2,145 mm 2,145 mm
Interior width 2,270 mm 2,270 mm 2,270 mm
Engine tunnel height 120 mm 120 mm 120 mm
Standing height on the engine tunnel 2,070 mm 1,860 mm 1,580 mm

Seats
Quantity 2 item 2 item 2 item
Standing height in front of the co-driver’s seat 2,150 mm 1,940 mm 1,660 mm

Beds
Quantity (max.) 2 items (max.) 2 items 1 item
Lower bed length 2,000 mm 2,000 mm 2,000 mm
Maximum lower bed width 800 mm 800 mm 800 mm
Lower bed width behinds the seats 700 mm 700 mm 700 mm
Height above lower bed 790 mm 1) 690 mm 1) 1,025 mm
Upper bed length 2,000 mm 2,000 mm
Upper bed width 715 mm 715 mm
Height above upper bed 660 mm 570 mm

Volume
Roof storage compartments 48 l 48 l 48 l
Roof luggage rack 355 l 200 l
Rear left storage box 234 l 234 l 234 l
Rear right storage box 292 l 292 l 292 l
Central storage space below bed 2) 219 l 219 l 219 l

Suitable application
Standard long-haul transport Very good Very good Qualified
Long-distance transport payload Good Good Good
Traction (construction site) Qualified Qualified Very good
Distribution transport Qualified Qualified Good
Municipal Qualified Qualified Qualified
  1. When equipped with two beds
  2. Maximum values, depending on the configuration
