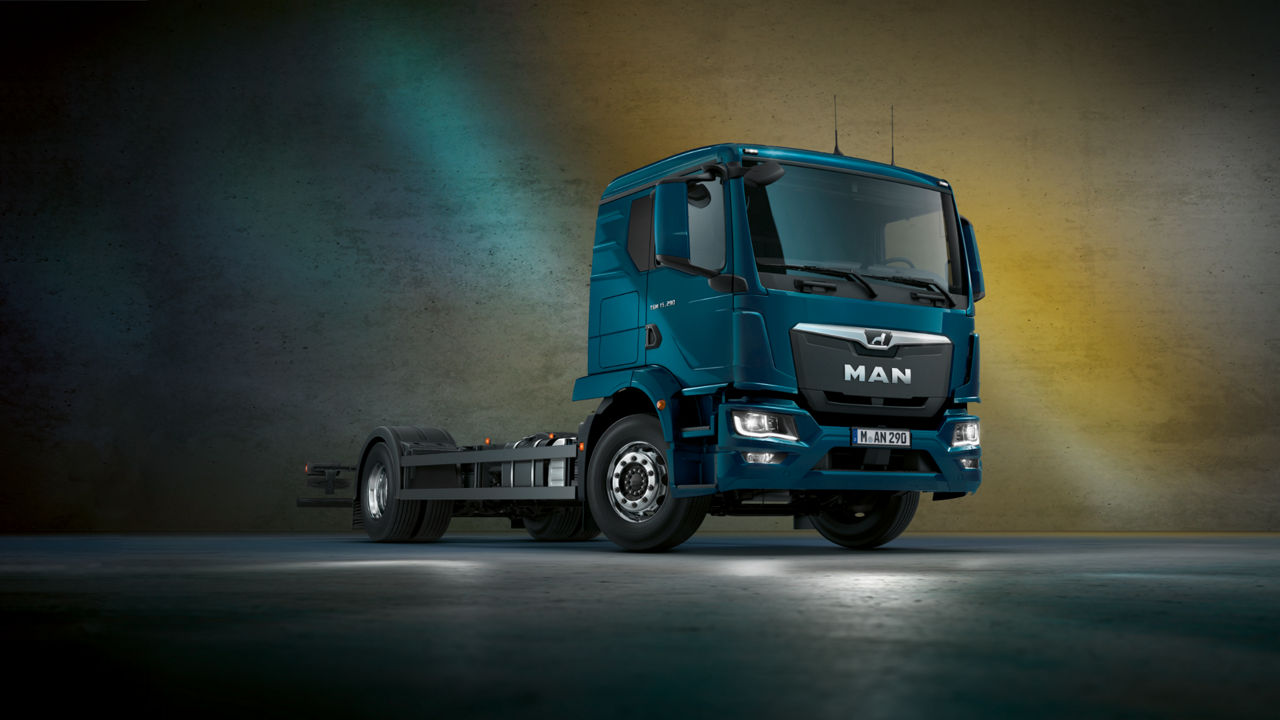

The MAN TGM– Specifications

Engine series	Cylinder, design	Displacement [Liter]	Performance [kW (PS)]	Emission standard	For vehicle series
D0836	6 in-line	6.9	235 (320) 213 (290) 184 (250)	Euro 5	TGM TGM TGM

	CC cab: The compact (slim, short, medium high)	DN cab: The double cabin	TN cab: The flexible (slim, long, standard height)
Main dimensions
External length	1,620 mm	2,790 mm	2,280 mm
External width	2,240 mm	2,240 mm	2,240 mm
Interior length	1,550 mm	2,650 mm	2,145 mm
Interior width	2,070 mm	2,070 mm	2,070 mm
Engine tunnel height	260/140 mm ¹⁾	260 mm	280 mm
Standing height on the engine tunnel	1,280 mm	1,385 mm	1,410 mm

Seats
Quantity	2 (optionally 3) items	6 (optionally 7) items	2 items
Standing height in front of the co-driver’s seat	1,585 mm	1,645/1,620 mm ²⁾	1,650 mm

Volume
Roof storage compartments	27 l	41 l	41 l
Roof luggage rack	_	_	_
Rear left storage box	_	_	208 l
Rear right storage box	_	_	242 l
Central storage space below bed ³⁾	_	_	133 l

Suitable application
Standard long-haul transport	Qualified	Qualified	Qualified
Long-distance transport payload	Qualified	Qualified	Very good
Traction (construction site)	Very good	Very good	Very good
Distribution transport	Very good	Qualified	Very good
Municipal	Very good	Very good	Qualified

Engine tunnel height 260 mm for TGL with D0836, 140 mm for TGL with D0834
Standing height in front of the co-driver’s seat 1,645 mm, standing height in front of the second seat row 1,620 mm
Maximum values, depending on the configuration

	MAN media system Navigation Professional 12.3 inches	MAN media system Navigation Advanced 7 inches	MAN media system Advanced 7 inches	MAN media system 7 inches	MAN radio SD card 7 inches
Equipment details
Screen diagonal	12.3"	7"	7"	7"	7"
Resolution	1,920 x 720 pixels	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels	800 x 480 pixels
USB/AUX in interface	✔	✔	✔	✔	_
Can be combined with MAN SmartSelect	✔	✔	✔	_	_
Message centre	✔	✔	✔	_	_

Radio functions
AM/FM tuner	✔	✔	✔	✔	✔
Sound tuning	✔	✔	✔	✔	✔
DAB/DAB+	✔	✔	✔	✔	_

Telephone services
Basic hands free function	_	_	✔	✔	_
Comfort hands free function for two mobile phones	✔	✔	_	_	_

Traffic functions
Truck navigation	✔	✔	_	_	_
Various options for map update	✔	✔	_	_	_
Online traffic for navigation function	✔	✔	_	_	_

Entertainment functions
Bluetooth music streaming	✔	✔	✔	✔	_
Smartphone integration	✔	✔	✔	_	_
SD card reader	✔	✔	✔	✔	✔

Feature enhancements
Preparation for camera	_	_	✔	_	_
Preparation for two cameras	✔	✔	_	_	_
Option to integrate MAN Apps in the vehicle	✔	✔	✔	_	_
